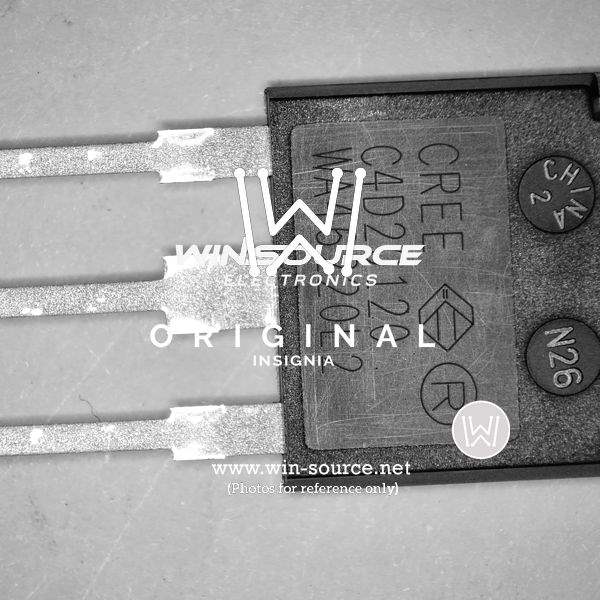

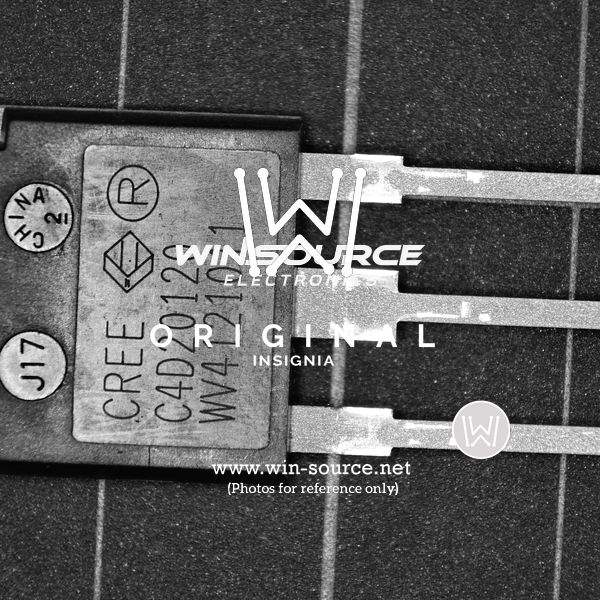

The C4D20120D is a silicon carbide (SiC) Schottky diode array from Cree Inc. These diodes offer superior switching performance and higher reliability compared to traditional silicon diodes, making them suitable for demanding power electronics applications. Each array consists of two diodes.

Applications:

• Power factor correction (PFC) circuits
• Motor drives
• Solar inverters
• Electric vehicle (EV) chargers
• Uninterruptible power supplies (UPS)
• High-frequency switching power supplies

Features:

• Silicon Carbide (SiC) Schottky diode
• Zero reverse recovery current
• High-frequency operation
• Temperature-independent switching behavior
• High surge current capacity
• Low forward voltage drop

Benefits:

• Increased efficiency in power conversion systems
• Reduced switching losses
• Higher operating frequencies
• Improved thermal performance
• Enhanced system reliability
• Smaller and lighter designs

Specifications:

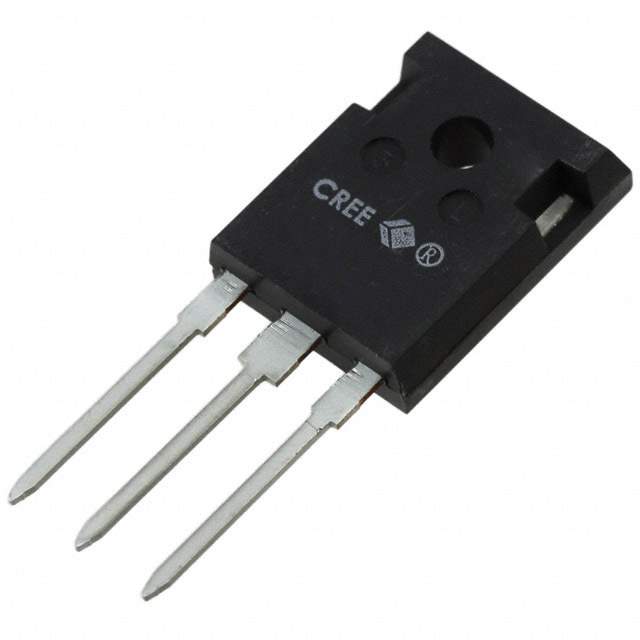

The C4D20120D has a repetitive peak reverse voltage (VRRM) of 1200V and a continuous forward current (IF) of 20A per diode (40A total). It exhibits zero reverse recovery current, enabling high-frequency operation without significant switching losses. The forward voltage drop (VF) is typically around 1.7V at the rated forward current. The device operates over a wide temperature range, and its switching characteristics are relatively independent of temperature changes. The package type is TO-247-3.

The SiC Schottky diode is a unipolar device that conducts only majority carriers. This means it has no stored charge, resulting in virtually zero reverse recovery current. This feature significantly reduces switching losses and allows for much higher switching frequencies than silicon diodes. The high thermal conductivity of SiC also helps to dissipate heat more efficiently, further improving performance and reliability.

In power factor correction (PFC) circuits, the C4D20120D helps to improve the power factor of the AC input, reducing harmonic distortion and increasing overall efficiency. In motor drive applications, the diode provides fast and efficient freewheeling, protecting the switching transistors from voltage spikes and improving motor performance. For solar inverters and EV chargers, the diode helps to convert DC power from solar panels or batteries to AC power for grid connection or charging, respectively, with high efficiency and reliability.

The C4D20120D diode array provides an effective solution for high-power, high-frequency applications requiring efficient and reliable performance. Its SiC technology offers significant advantages over traditional silicon diodes, making it a suitable choice for modern power electronics designs.
