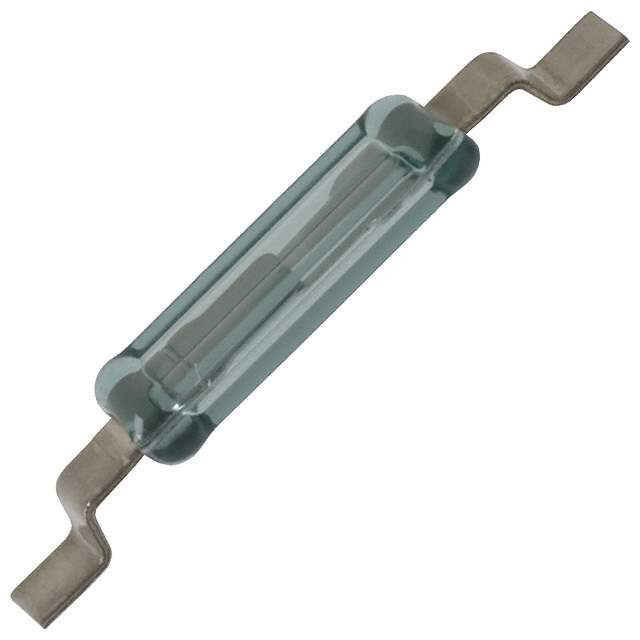

UM2315 Real Image
Same model may have multiple batches, images only for reference.

UM2315

Part No UM2315
Manufacturer Coto Technology
Catalog Magnetic, Reed Switches
Description Ultra-Mini Dyad | SWITCH REED SPST-NO 250MA 175V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Coto Technology
Packaging Cut Tape (CT)
Status Obsolete
Type Glass Body
Circuit SPST-NO
Operate Range 10 ~ 20AT
Current - Switching 250mA (AC/DC)
Voltage - Switching AC 175V
Voltage - Switching DC 175V
Power - Rated 5VA
Operate Time 0.4ms
Release Time 0.1ms
Mounting Style SMD
Termination Style Gull Wing
Length - Overall 0.400" (10.16mm)
Size - Body 0.232" L x 0.076" W x 0.060" H (5.89mm x 1.93mm x 1.53mm)
Height Above Board 0.064" (1.64mm)
Temperature Range - Operating -40°C ~ 125°C
Capacitance 0.3pF
Current - Carry 500mA (AC/DC)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1277139-UM2315
Manufacturer Homepage www.clare.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UM2315 CAD Model

Description

The Coto Technology 1277139-UM2315 is a glass body SPST-NO switch that has a capacitance of 0.3pF and a power rating of 5VA.

  • Body: Glass
  • Switch Type: SPST-NO
  • Capacitance: 0.3pF
  • Power Rating: 5VA
  • Packaging: Cut tape (CT)
  • Mounting: SMD technology
  • Termination Style: Gull wing
  • Height Above Board: 0.064" (1.64mm)
  • Overall Length: 0.400" (10.16mm)
  • Current-Carrying Capacity: 500mA (AC/DC)
  • Switching Current: 250mA (AC/DC)
  • Voltage Rating (Switching AC/DC): 175V
  • Product Status: Obsolete
  • Supply and Demand Status: Balanced
