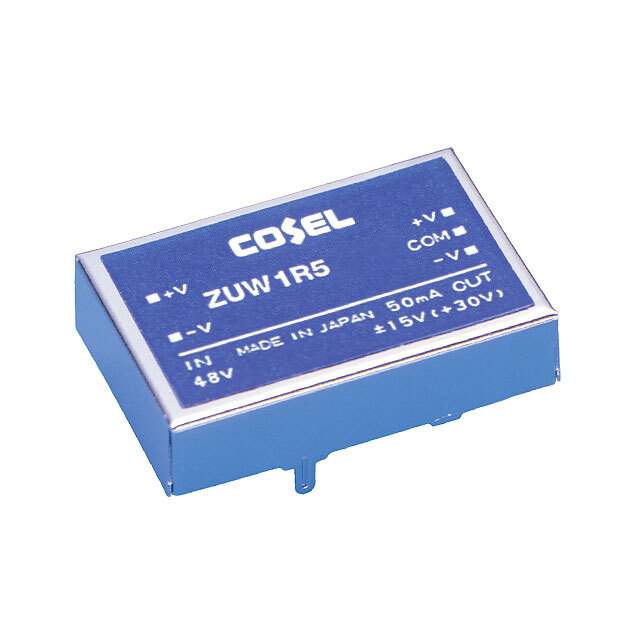

ZUW1R52412 Real Image
Same model may have multiple batches, images only for reference.

ZUW1R52412

Part No ZUW1R52412
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V / Module DC-DC 24VIN 2-OUT 12V/-12V 0.065A 1.56W 5-Pin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Cosel USA, Inc.
Series ZUW
Type Isolated Module
Number of Outputs 2
Input Voltage MIN 18V
Voltage Input MAX 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Maximum) 65mA, 65mA
Voltage - Isolation 500V
Applications ITE (Commercial)
Features OCP
Operating Temperature Range -20°C ~ 71°C (With Derating)
Efficiency 71%
Mounting Style Through Hole
Package 5-DIP Module
Dimension 1.08" L x 0.71" W x 0.28" H (27.5mm x 18.0mm x 7.0mm)
Win Source Part Number 800429-ZUW1R52412
Popularity Medium
Supply and Demand Status Limited
Family Name ZUW1R52412
Introduction Date May 01, 2001
Country of Origin Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian ZUW1R52412 CAD Model

Description

The Cosel USA ZUW1R52412 is a 2-output isolated module DC-DC converter.

  • Series: ZUW
  • Power Output: 0W
  • Package: 5-DIP
  • Features: OCP
  • Dimensions: 1.08" L x 0.71" W x 0.28" H (27.5mm x 18.0mm x 7.0mm)
  • Applications: ITE (Commercial)
  • Isolation Voltage: 500V
  • Maximum Output Current: 65mA
  • Input Voltage Range: 18V to 36V
  • Output Voltage 1: 12V
  • Output Voltage 2: -12V
  • Efficiency: 71%
  • Mounting Type: Through hole
