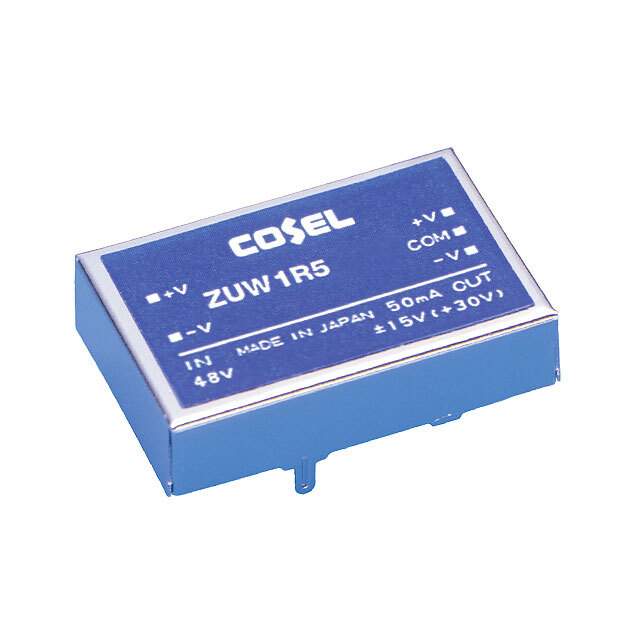

Same model may have multiple batches, images only for reference.

ZUW1R51212

Name: ZUW1R51212
Brand: Cosel USA, Inc.
SKU: 1025850
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ZUW1R51212
Manufacturer	Cosel USA, Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V / Isolated Module DC DC Converter 2 Output 12V -12V 65mA, 65mA 9V - 18V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Cosel USA, Inc.
Series	ZUW (1.5W)
Package	Box
Product Status	Last Time Buy
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	65mA, 65mA
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Features	OCP
Temperature Range - Operating	-20°C ~ 71°C (With Derating)
Efficiency	71%
Mounting Type	Through Hole
Package / Case	5-DIP Module
Dimension	1.08" L x 0.71" W x 0.28" H (27.5mm x 18.0mm x 7.0mm)
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	1776-1899
Standard Package	1
Win Source Part Number	1025850-ZUW1R51212
Ultra Librarian 3D Model	Ultra Librarian ZUW1R51212 CAD Model

Alternative Products

Description

The ZUW1R51212 is a 1.5W isolated module DC-DC converter that comes with two output channels.

Type: Isolated Module
Power: 1.5W
Output Channels: Two
Application: Board Mount DC-DC Converters
Series: ZUW
Voltage Isolation: 500V
Package: 5-DIP module
Operating Temperature: -20°C to 71°C with derating
