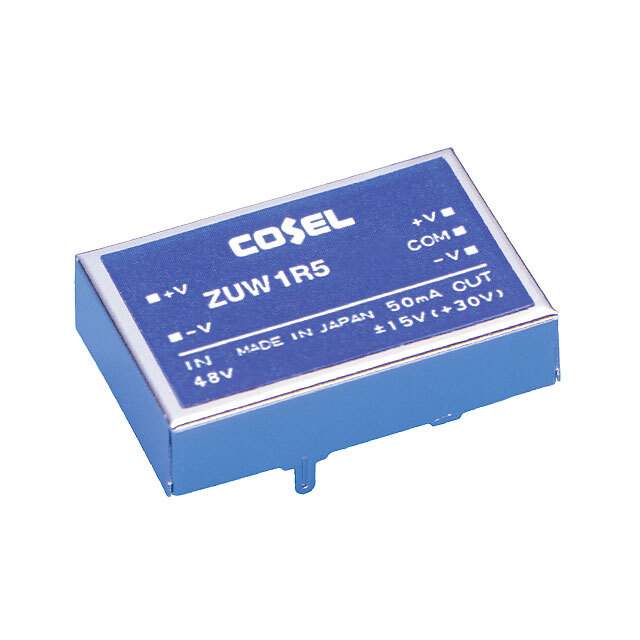

Same model may have multiple batches, images only for reference.

ZUW1R50515

Name: ZUW1R50515
Brand: Cosel USA, Inc.
SKU: 1031403
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ZUW1R50515
Manufacturer	Cosel USA, Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V / Isolated Module DC DC Converter 2 Output 15V -15V 50mA, 50mA 4.5V - 9V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Cosel USA, Inc.
Series	ZUW (1.5W)
Package	Box
Product Status	Last Time Buy
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	9V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	50mA, 50mA
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Features	OCP
Temperature Range - Operating	-20°C ~ 71°C (With Derating)
Efficiency	67%
Mounting Type	Through Hole
Package / Case	5-DIP Module
Dimension	1.08" L x 0.71" W x 0.28" H (27.5mm x 18.0mm x 7.0mm)
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	1776-1898
Standard Package	1
Win Source Part Number	1031403-ZUW1R50515
Ultra Librarian 3D Model	Ultra Librarian ZUW1R50515 CAD Model

Alternative Products

Description

This isolated module with a part number of 1031403-ZUW1R50515 is manufactured by Cosel USA, Inc.

Type: DC-DC converter
Power Rating: 1.5W
Outputs: Two
Input Voltage Range: 4.5V and 9V
Output Voltages: 15V and -15V
Efficiency: 67%
Application: ITE
Operating Temperature: -20°C to 71°C
Package: 5-DIP module
Status: Last time buy
