Analog Devices Inc. ADAU1977WBCPZ Microphone ADC

The ADAU1977WBCPZ is a high-performance, quad ADC (Analog-to-Digital Converter) specifically designed for microphone and audio signal acquisition applications. Manufactured by Analog Devices Inc., a leader in high-performance analog technology, this component offers a seamless and efficient solution for capturing high-fidelity audio signals in a variety of devices, ranging from professional audio equipment to consumer electronics and industrial applications.

At the heart of the ADAU1977WBCPZ lies its ability to provide four channels of superior audio ADC conversion, making it ideal for systems that require multiple microphone inputs. With a 24-bit data output, it ensures that the captured audio is reproduced with exceptional clarity and detail. The device operates over a wide dynamic range, with a programmable input range that allows users to optimize performance for specific use cases.

The ADAU1977WBCPZ is designed to interface directly with microphones, offering built-in microphone bias voltage and featuring a low-noise microphone preamplifier for each channel. This simplifies design and reduces external component requirements, thereby minimizing system complexity and cost. The device also supports both differential and single-ended inputs, providing further versatility in system design.

Energy efficiency is another key feature of the ADAU1977WBCPZ. It incorporates a power-saving mode that significantly reduces power consumption when the device is inactive, making it well-suited for battery-powered applications where power management is critical.

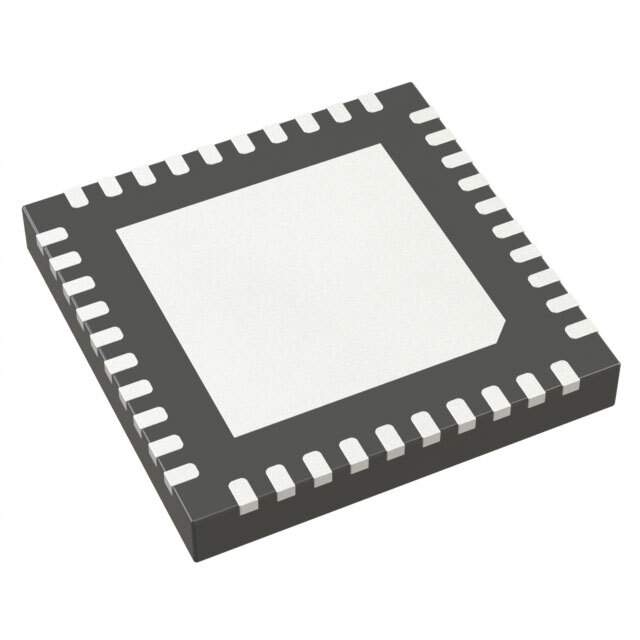

For ease of integration, the ADAU1977WBCPZ comes in a compact 32-lead LFCSP (Lead Frame Chip Scale Package) that is both space-saving and conducive to efficient thermal management. It operates over the industrial temperature range, ensuring reliable performance across diverse operating conditions.

Whether it's for studio recording equipment, voice-activated systems, or advanced audio processing, the ADAU1977WBCPZ from Analog Devices Inc. provides designers with a high-quality, flexible solution for their audio acquisition needs. With its combination of multi-channel capacity, audio fidelity, and energy efficiency, the ADAU1977WBCPZ stands out as a top choice for audio ADC applications.
