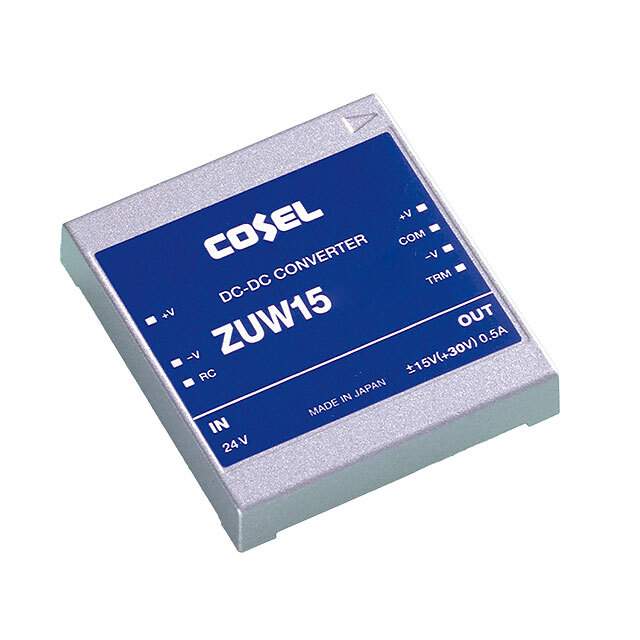

Same model may have multiple batches, images only for reference.

ZUW151215

Get a Quote

Part No	ZUW151215
Manufacturer	Cosel USA, Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V / Isolated Module DC DC Converter 2 Output 15V -15V 500mA, 500mA 9V - 18V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Cosel USA, Inc.
Series	ZUW (15W)
Package	Box
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	18V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	500mA, 500mA
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP
Temperature Range - Operating	-20°C ~ 71°C (With Derating)
Efficiency	83%
Mounting Type	Through Hole
Package / Case	7-DIP Module
Dimension	1.97" L x 1.77" W x 0.33" H (50.0mm x 45.0mm x 8.5mm)
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	1776-1892
Standard Package	1
Win Source Part Number	1217074-ZUW151215
Ultra Librarian 3D Model	Ultra Librarian ZUW151215 CAD Model

Description

The 1217074-ZUW151215 is an isolated module type electronic component manufactured by Cosel USA, Inc.

Outputs: Two
Maximum Output Current: 500mA each
Input Voltage Range: 9V to 18V
Output Voltage: 15V and -15V respectively
Package: 7-DIP Module
Dimension: 1.97" L x 1.77" W x 0.33" H (50.0mm x 45.0mm x 8.5mm)
Efficiency: 83%
Operating Temperature Range: -20°C and 71°C (With Derating)
Win Source Part Number: 1217074-ZUW151215
