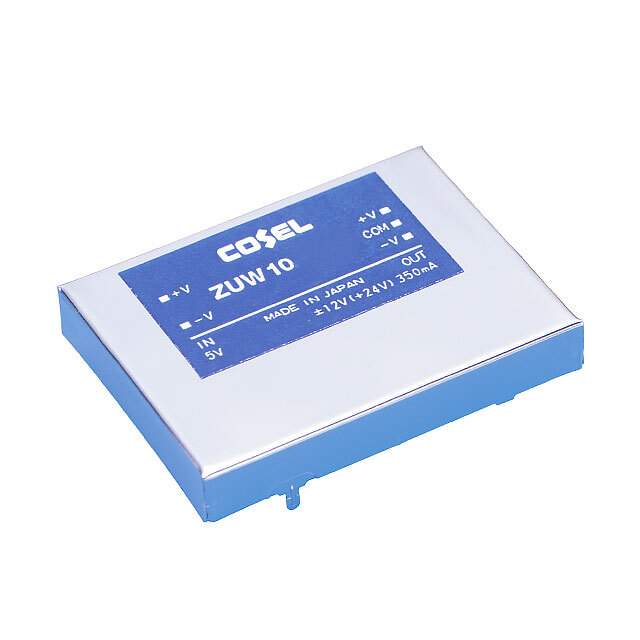

ZUW102415 Real Image
Same model may have multiple batches, images only for reference.

ZUW102415

Part No ZUW102415
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V / Module DC-DC 24VIN 2-OUT 15V/-15V 0.35A 10.5W 5-Pin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Cosel USA, Inc.
Series ZUW
Type Isolated Module
Number of Outputs 2
Input Voltage MIN 18V
Voltage Input MAX 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Maximum) 350mA, 350mA
Voltage - Isolation 500V
Applications ITE (Commercial)
Features OCP
Operating Temperature Range -20°C ~ 71°C (With Derating)
Efficiency 81%
Mounting Style Through Hole
Package 5-DIP Module
Dimension 1.77" L x 1.38" W x 0.28" H (45.0mm x 35.0mm x 7.0mm)
Win Source Part Number 800426-ZUW102415
Popularity Medium
Supply and Demand Status Limited
Family Name ZUW102415
Introduction Date August 22, 2005
Country of Origin Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian ZUW102415 CAD Model

Description

The Cosel USA, Inc. 800426-ZUW102415 is a 5-DIP module isolated module type power supply that belongs to the ZUW series.

  • Series: ZUW
  • Applications: ITE (Commercial)
  • Popularity: Medium
  • Operating Temperature Range: -20°C to 71°C (with derating)
  • Features: OCP
  • Input Voltage Range: 18V to 36V
  • Efficiency: 81%
  • Output 1 Voltage: 15V
  • Output 2 Voltage: -15V
