Same model may have multiple batches, images only for reference.

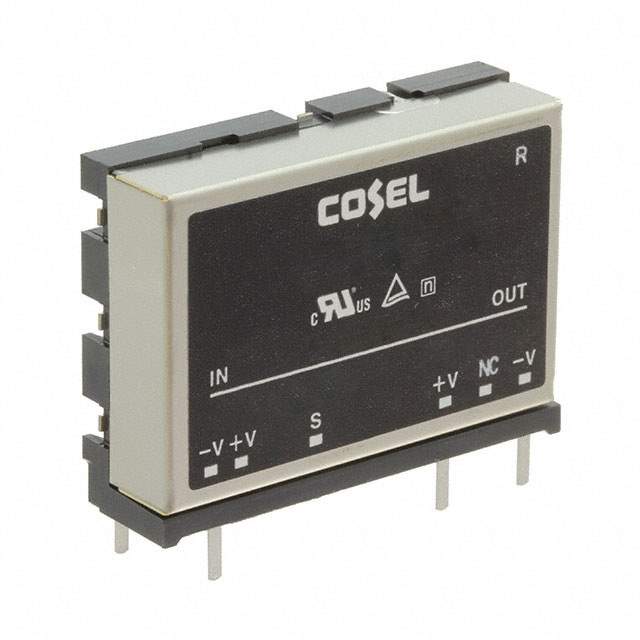

ZTS1R50505 Real Image
Same model may have multiple batches, images only for reference.

ZTS1R50505

Part No ZTS1R50505
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1.5W / Isolated Module DC DC Converter 1 Output 5V 300mA 4.5V - 9V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Cosel USA, Inc.
Series ZTS (1.5W)
Package Box
Product Status Last Time Buy
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 5V
Current - Output (Max) 300mA
Power (Watts) 1.5 W
Voltage - Isolation 500 V
Applications ITE (Commercial)
Temperature Range - Operating -20°C ~ 71°C (With Derating)
Efficiency 68%
Mounting Type Through Hole
Package / Case 6-DIP Module
Dimension 1.10" L x 0.39" W x 0.83" H (28.0mm x 10.0mm x 21.0mm)
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1776-2859,ZTS1R50505-ND
Standard Package 1
Win Source Part Number 1030192-ZTS1R50505
Ultra Librarian 3D Model Ultra Librarian ZTS1R50505 CAD Model

Description

The ZTS (1.5W) series isolated module from Cosel USA, Inc. is a reliable and efficient solution for your power supply needs.

  • Power: 1.5 W
  • Voltage Isolation: 500 V
  • Win Source Part Number: 1030192-ZTS1R50505
  • Temperature Range: -20°C to 71°C (with derating)
