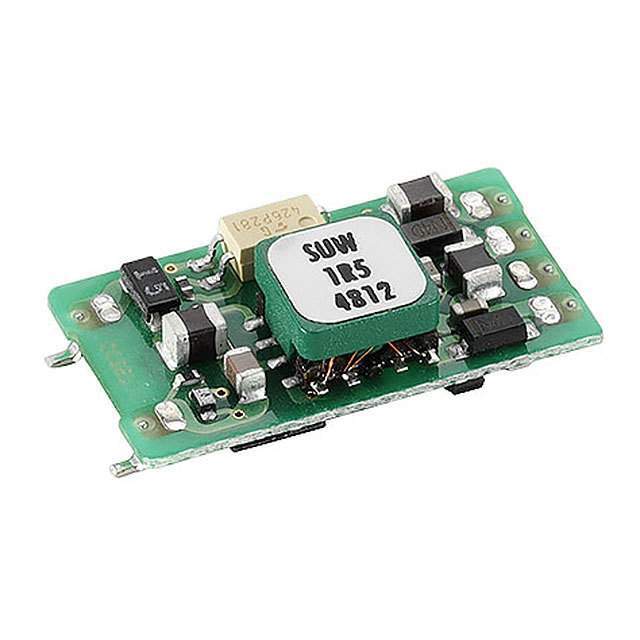

Same model may have multiple batches, images only for reference.
SUW1R52415B Cosel USA, Inc.
Same model may have multiple batches, images only for reference.

SUW1R52415B

Part No SUW1R52415B
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 1.5W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series SUW (1.5W)
Package Box
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 50mA, 50mA
Power (Watts) 1.5 W
Voltage - Isolation 500 V
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 75%
Mounting Type Surface Mount
Package / Case 6-SMD Module
Size / Dimension 0.84" L x 0.48" W x 0.26" H (21.4mm x 12.2mm x 6.5mm)
Base Product Number SUW1R52415
Standard Package 1 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 795847-SUW1R52415B
Ultra Librarian 3D Model Ultra Librarian SUW1R52415B CAD Model

Description

The SUW1R52415B is a 1.5W isolated module DC-DC converter from the SUW series by Cosel USA, Inc.

  • Applications: Board mount
  • Size: 0.84" L x 0.48" W x 0.26" H
  • Output Voltages: 15V and -15V
  • Maximum Output Current: 50mA (for each output)
  • Input Voltage Range: 18V to 36V
  • Efficiency: 75%
  • Applications: ITE (Commercial)
  • Package: Box
  • Voltage Isolation: 500V
  • Mounting: Surface mount
  • Operating Temperature: -40°C to 85°C
