Same model may have multiple batches, images only for reference.

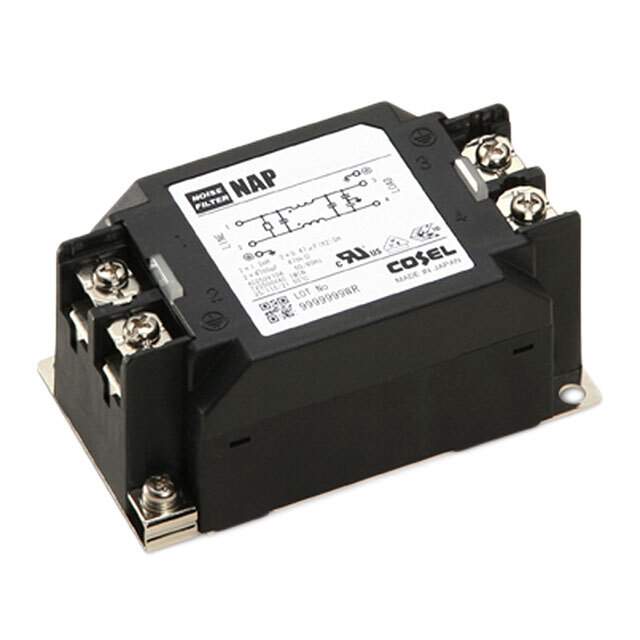

NAP-10-472 Real Image
Same model may have multiple batches, images only for reference.

NAP-10-472

Part No NAP-10-472
Manufacturer Cosel USA, Inc.
Catalog Power Line Filter Modules
Description LINE FILTER 250VDC/VAC 10A CHAS  /  Single Phase EMC/EMI Line Filter 10 A 250VAC Single Stage Terminal Block
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Power Line Filter Modules
Mfr Cosel USA, Inc.
Series NAP
Package Box
Filter Type Single Phase
Configuration Single Stage
Voltage - Rated DC 250V
Voltage - Rated AC 250V
Voltage - Rated AC (Phase to Ground/Neutral) 250 V
Current 10 A
Applications General Purpose
Approval Agency cURus, VDE
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Chassis Mount
Termination Style Terminal Block
Base Product Number NAP-10
MSL Level Not Applicable
ECCN EAR99
HTSUS 8543.70.9860
Other Names 1776-1417
Standard Package 1
Win Source Part Number 1203109-NAP-10-472
Ultra Librarian 3D Model Ultra Librarian NAP-10-472 CAD Model

Description

The Cosel USA NAP-10-472 is a power line filter module with a single-stage configuration.

  • Series: NAP
  • Package: Box
  • Termination Style: Terminal Block
  • Applications: General Purpose
  • Inductance: Not Specified
  • Package: 1
  • Filter Type: Single-Phase
  • Current: 10A
  • Voltage - Rated DC: 250V
  • Voltage - Rated AC: 250V
  • Voltage - Rated AC (Phase to Ground/Neutral): 250V
  • Frequency - Operating: Not Specified
  • Mounting Type: Chassis Mount
  • Temperature Range - Operating: -40°C ~ 85°C
  • MSL: Not Applicable
  • HTSUS: 8543.70.9860
