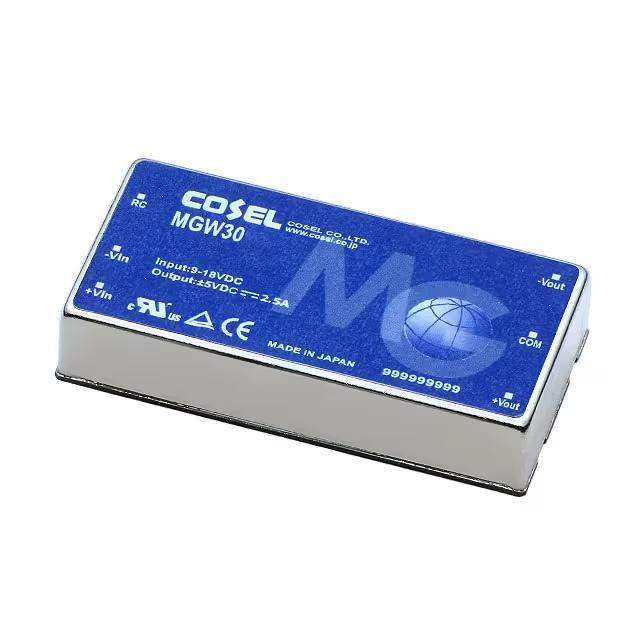

Same model may have multiple batches, images only for reference.
MGW302412-G Cosel USA, Inc.
Same model may have multiple batches, images only for reference.

MGW302412-G

Part No MGW302412-G
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 24V 30W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1196836-MGW302412-G
Manufacturer Cosel USA, Inc.
Category Power Supplies - Board Mount DC DC Converters
Series MGW (30W)
Package Box
Type Isolated Module
Number of Outputs 2
Mounting Type Through Hole
Package / Case 6-DIP Module
Base Product Number MGW302412
Size / Dimension 2.00" L x 1.00" W x 0.39" H (50.8mm x 25.4mm x 9.9mm)
Ultra Librarian 3D Model Ultra Librarian MGW302412-G CAD Model

Description

The Cosel USA MGW302412 is a 30W isolated module DC-DC converter.

  • Temperature Range: -40°C to 85°C (with derating)
  • Size: 2.00" L x 1.00" W x 0.39" H (50.8mm x 25.4mm x 9.9mm)
  • Output Voltages: 12V and -12V
  • Output Current: 3.4A each output
  • Efficiency: 94%
  • Series: MGW
  • Package: 6-DIP module
  • Mounting: Through-hole
  • Status: Active
  • Manufacturer: Cosel USA, Inc.
