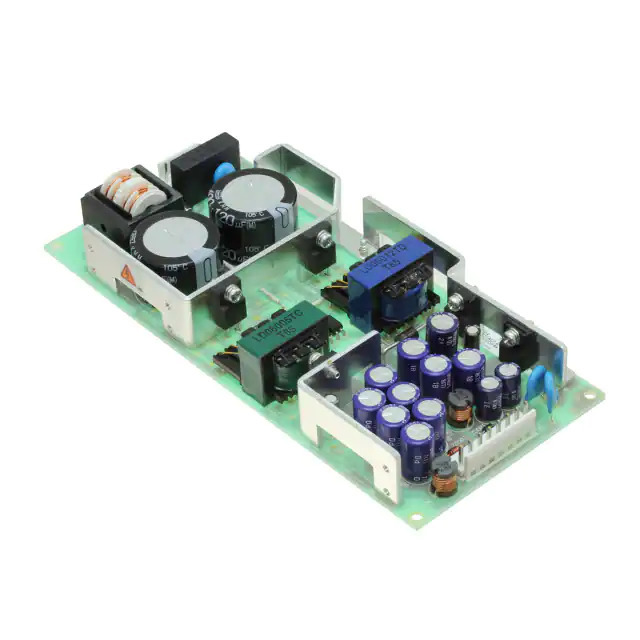

LDC60F-1 Cosel USA, Inc.
Same model may have multiple batches, images only for reference.

LDC60F-1

Part No LDC60F-1
Manufacturer Cosel USA, Inc.
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 5V +/-12V 25W / Open Frame AC DC Converters 3 Output 5V 12V -12V 85 ~ 264 VAC, 110 ~ 370 VDC Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr Cosel USA, Inc.
Series LDC (60W)
Package Box
Product Status Last Time Buy
Type Open Frame
Number of Outputs 3
Voltage - Input 85 ~ 264 VAC, 110 ~ 370 VDC
Voltage - Output 1 5V
Voltage - Output 2 12V
Voltage - Output 3 -12V
Voltage - Output 4 -
Voltage - Output 5 -
Voltage - Output 6 -
Current - Output 1 5 A
Current - Output 2 2.5 A
Current - Output 3 500 mA
Power (Watts) 25W
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 72%
Temperature Range - Operating -10°C ~ 60°C (With Derating)
Features Adjustable Output, Universal Input
Mounting Type Chassis Mount
Size / Dimension 3.27" L x 1.02" W x 7.28" H (83.1mm x 25.9mm x 184.9mm)
Approval Agency CE, CSA, cURus, TUV
Standard Number 60950-1
Minimum Load Required -
Base Product Number LDC60F
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9520
California Prop 65 Warning Information
Win Source Part Number 1355419-LDC60F-1
Ultra Librarian 3D Model Ultra Librarian LDC60F-1 CAD Model

Description

The Cosel LDC60F-1 is a 60W open frame AC/DC converter designed for power supply applications.

  • Features: Adjustable Output, Universal Input Voltage Range
  • Series: LDC
  • Size: 3.27" L x 1.02" W x 7.28" H
  • Mounting Type: Chassis Mount
  • Outputs: 5V, 12V, and -12V
  • Output Currents: 5A, 2.5A, and 500mA respectively
  • Power Rating: 25W
  • Efficiency: 72%
  • Application: ITE (Commercial)
  • Approvals: CE, CSA, cURus, and TUV
  • Voltage Isolation: 3 kV
  • Input Voltage: 85V to 264VAC or 110V to 370VDC
