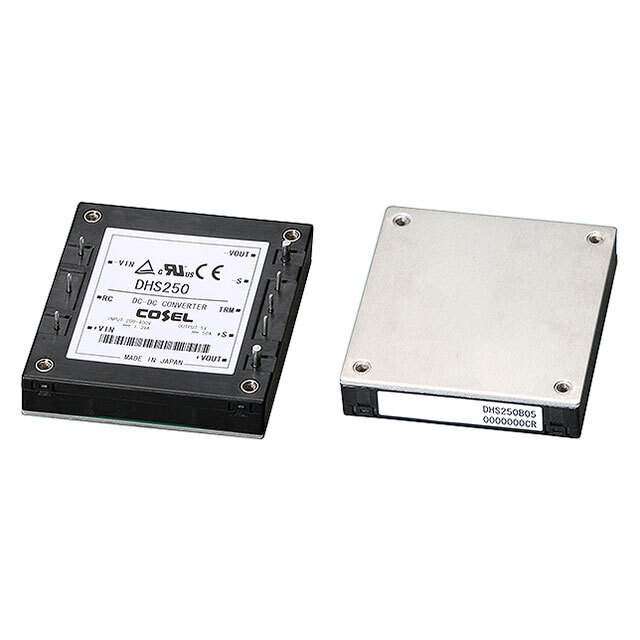

Same model may have multiple batches, images only for reference.

DHS250B24

Name: DHS250B24
Brand: Cosel USA, Inc.
SKU: 1029223
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

Part No	DHS250B24
Manufacturer	Cosel USA, Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 24V / Isolated Module DC DC Converter 1 Output 24V 10.5A 200V - 400V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Cosel USA, Inc.
Series	DHS (250W)
Package	Box
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	200V
Voltage - Input (Max)	400V
Voltage - Output 1	24V
Current - Output (Max)	10.5A
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP
Temperature Range - Operating	-40°C ~ 100°C (With Derating)
Efficiency	88%
Mounting Type	Through Hole
Package / Case	8-DIP Module
Dimension	2.40" L x 2.30" W x 0.50" H (61.0mm x 58.4mm x 12.7mm)
Base Product Number	DHS250
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	1776-1205
Standard Package	1
Win Source Part Number	1029223-DHS250B24
Ultra Librarian 3D Model	Ultra Librarian DHS250B24 CAD Model

Description

The Cosel USA DHS (250W) is an isolated module DC-DC converter with an input voltage range of 200V to 400V and an output voltage of 24V with a current output of 10.5A.

Manufacturer: Cosel USA
Package: 8-DIP module
Mounting Type: Through Hole
Category: Power Supplies - Board Mount
ECCN: EAR99
Supply and Demand: Balanced
Production Lead Time: 5 weeks
HTSUS Code: 8504.40.9580
Other Part Numbers: V300B24C250BL, V48B24C250BL, V72B24T250BG, CN200A110-24, DHS200A24, PH300S280-24
