Same model may have multiple batches, images only for reference.

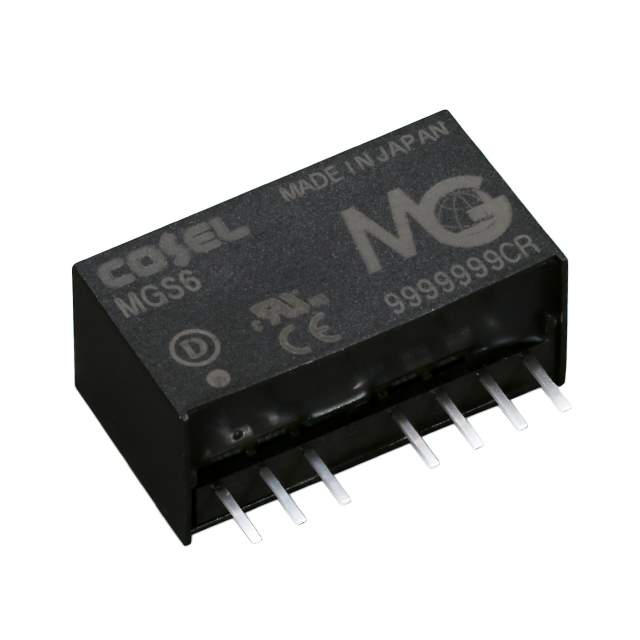

MGS6053R3 Real Image
Same model may have multiple batches, images only for reference.

MGS6053R3

Part No MGS6053R3
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V / Isolated Module DC DC Converter 1 Output 3.3V 1.6A 4.5V - 9V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series MGS (6W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 3.3V
Current - Output (Max) 1.6A
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 81%
Mounting Type Through Hole
Package / Case 7-SIP Module
Size / Dimension 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Base Product Number MGS6053
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1350221-MGS6053R3
Ultra Librarian 3D Model Ultra Librarian MGS6053R3 CAD Model

Description

The Cosel MGS6053R3 is an isolated module DC-DC converter that is designed for ITE (commercial) applications.

  • Application: ITE (Commercial)
  • Voltage Input: 4.5-9V
  • Voltage Isolation: 1.5 kV
  • Output Type: Single
  • Voltage Output: 3.3V
  • Current Output: 1.6A
  • Efficiency: 81%
  • Mounting Type: Through-Hole
  • Operating Temperature: -40°C to 85°C (with derating)
