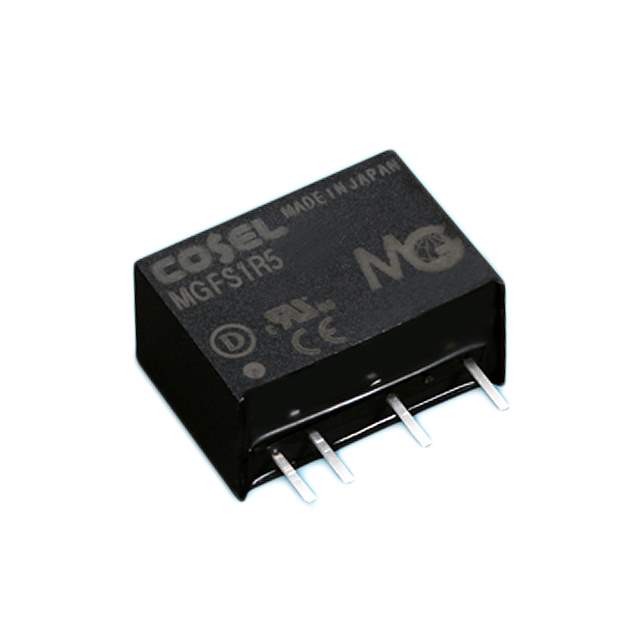

MGS1R52405 Real Image
Same model may have multiple batches, images only for reference.

MGS1R52405

Part No MGS1R52405
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V / Isolated Module DC DC Converter 1 Output 5V 300mA 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series MGS (1.5W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 300mA
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 80%
Mounting Type Through Hole
Package / Case 4-SIP Module
Size / Dimension 0.67" L x 0.33" W x 0.47" H (17.0mm x 8.5mm x 12.0mm)
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1336741-MGS1R52405
Ultra Librarian 3D Model Ultra Librarian MGS1R52405 CAD Model

Description

The Cosel USA 1336741-MGS1R52405 is a DC-DC converter module that belongs to the MGS (1.5W) series.

  • Series: MGS (1.5W)
  • Feature: Overcurrent protection (OCP)
  • Package: Tube
  • Dimension: 0.67" L x 0.33" W x 0.47" H (17.0mm x 8.5mm x 12.0mm)
  • Application: ITE (Commercial)
  • Voltage Isolation: 1.5 kV
  • Number of Outputs: One
  • Maximum Output Current: 300mA
  • Input Voltage: 18V to 36V
  • Output Voltage: 5V
  • Efficiency: 80%
  • Mounting Type: Through-hole
  • Package/Case: 4-SIP module
  • Operating Temperature: -40°C to 85°C (with derating)
