Same model may have multiple batches, images only for reference.

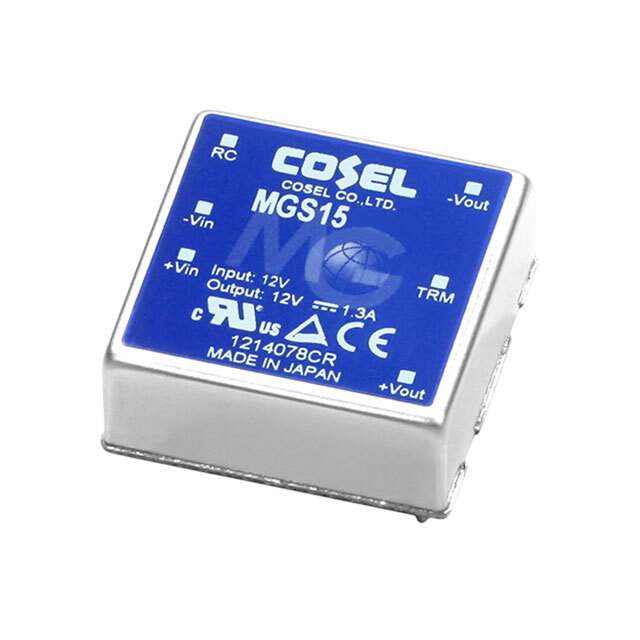

MGS152405 Real Image
Same model may have multiple batches, images only for reference.

MGS152405

Part No MGS152405
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V / Isolated Module DC DC Converter 1 Output 5V 3A 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series MGS (15W)
Package Box
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 3A
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 89%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1341132-MGS152405
Ultra Librarian 3D Model Ultra Librarian MGS152405 CAD Model

Description

The MGS152405 is a 15W isolated module power supply designed for use in board mount DC-DC converters from Cosel USA.

  • Features: Remote On/Off, Over Current Protection
  • Standard Package: 1
  • Voltage Isolation: 1.5 kV
  • Number of Outputs: 1
  • Current - Output (Max): 3A
  • Voltage - Output: 5V
  • Efficiency: 89%
  • Mounting Type: Through Hole
  • Package / Case: 6-DIP Module
  • Operating Temperature: -40°C ~ 85°C (with derating)
  • Applications: ITE (Commercial)
