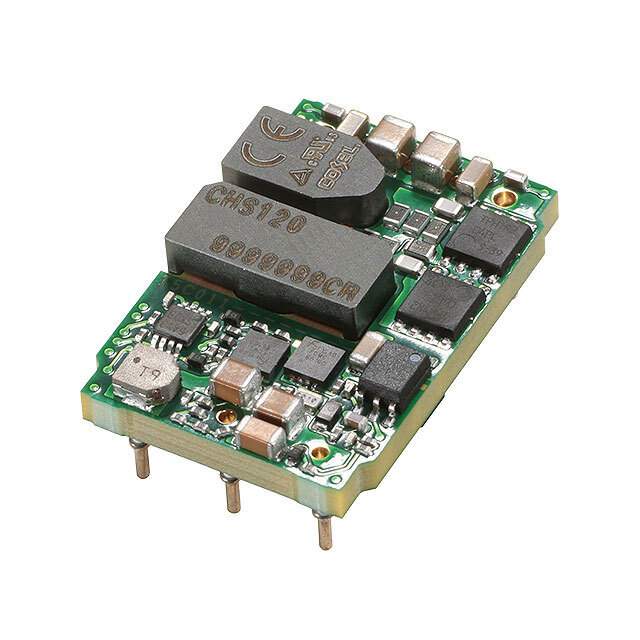

CHS1202415 Real Image
Same model may have multiple batches, images only for reference.

CHS1202415

Part No CHS1202415
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 120W / Isolated Module DC DC Converter 1 Output 15V 8A 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series CHS (120W)
Package Box
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Current - Output (Max) 8A
Power (Watts) 120 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote Sense
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 91%
Mounting Type Through Hole
Package / Case Sixteenth Brick
Size / Dimension 1.30" L x 0.90" W x 0.41" H (33.0mm x 22.9mm x 10.5mm)
Supplier Device Package Sixteenth Brick
Approval Agency CE, cURus, TUV
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1337351-CHS1202415
Ultra Librarian 3D Model Ultra Librarian CHS1202415 CAD Model

Description

The Cosel CHS1202415 is a 120W Isolated Module DC-DC converter with remote sense feature.

  • Type: Isolated Module
  • Number of Outputs: 1
  • Voltage - Input (Min): 18V
  • Voltage - Input (Max): 36V
  • Voltage - Output 1: 15V
  • Current - Output (Max): 8A
  • Power (Watts): 120W
  • Applications: ITE (Commercial)
  • Features: Remote Sense
  • Efficiency: 91%
  • Voltage - Isolation: 2.25 kV (2250V)
  • Operating Temperature: -40°C ~ 85°C with Derating
  • Mounting Type: Through Hole
  • Package / Case: Sixteenth Brick
  • Size / Dimension: 1.30" L x 0.91" W x 0.37" H (33.0mm x 23.1mm x 9.4mm)
  • Approvals: CE, cURus, TUV
