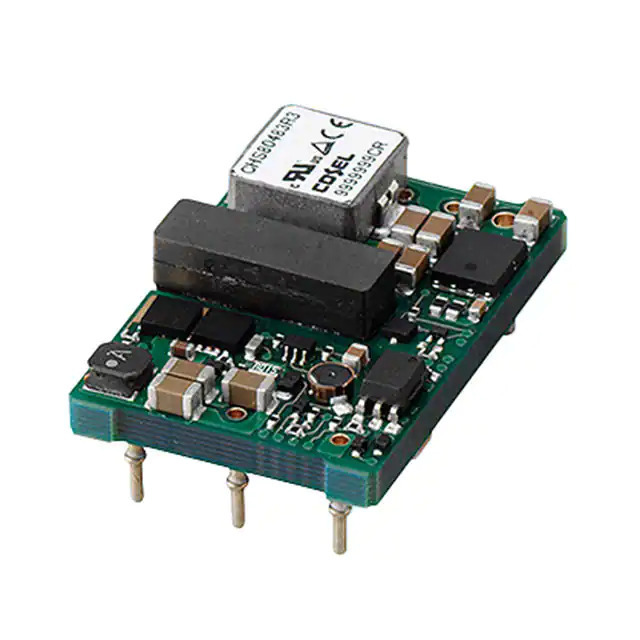

Same model may have multiple batches, images only for reference.
CHS804812 Cosel USA, Inc.
Same model may have multiple batches, images only for reference.

CHS804812

Part No CHS804812
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V / Isolated Module DC DC Converter 1 Output 12V 7.5A 36V - 76V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series CHS (80W)
Package Box
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 76V
Voltage - Output 1 12V
Voltage - Output 2 -
Voltage - Output 3 -
Current - Output (Max) 7.5A
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 90%
Mounting Type Through Hole
Package / Case 8-DIP Module
Size / Dimension 1.30" L x 0.90" W x 0.41" H (33.0mm x 22.8mm x 10.5mm)
Supplier Device Package -
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1355439-CHS804812
Ultra Librarian 3D Model Ultra Librarian CHS804812 CAD Model

Description

The Cosel CHS804812 is an 80W isolated module DC/DC converter designed for board mount applications. Cosel

  • Temperature Range: -40°C ~ 85°C
  • Number of Outputs: 1
  • Voltage - Output 1: 12V
  • Current - Output (Max): 7.5A
  • Power (Watts): 80W
  • Efficiency: 90%
  • Features: Remote On/Off, OCP, OTP, OVP
  • Mounting Type: Through Hole
  • Size / Dimension: 1.30" L x 0.90" W x 0.41" H
