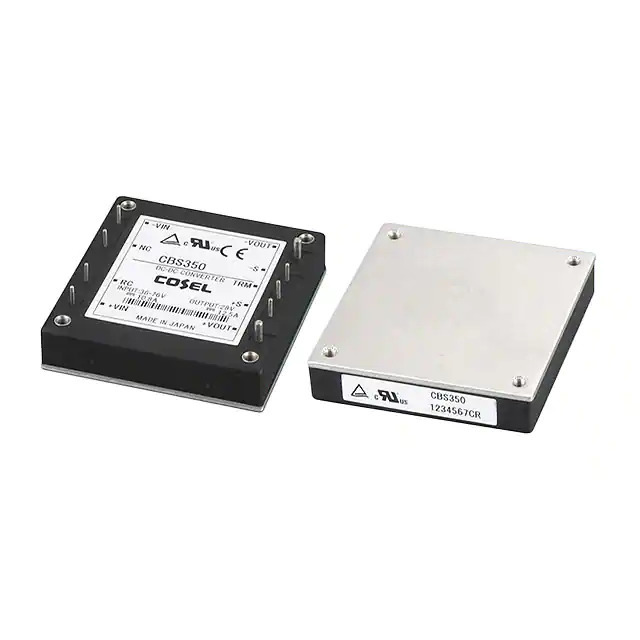

Same model may have multiple batches, images only for reference.
CBS3502412 Cosel USA, Inc.
Same model may have multiple batches, images only for reference.

CBS3502412

Part No CBS3502412
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V / Isolated Module DC DC Converter 1 Output 12V 25A 20V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series CBS (350W)
Package Box
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 20V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -
Voltage - Output 3 -
Current - Output (Max) 25A
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP
Temperature Range - Operating -40°C ~ 100°C (With Derating)
Efficiency 86%
Mounting Type Through Hole
Package / Case 13-DIP Module
Size / Dimension 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Supplier Device Package -
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1355464-CBS3502412
Ultra Librarian 3D Model Ultra Librarian CBS3502412 CAD Model

Description

The Cosel USA CBS (350W) series is a high-power and high-efficiency power supply module designed for board mount applications by Cosel USA.

  • Operating Temperature: -40°C to 100°C
  • Design: Isolated
  • Output Current (Max): 25A
  • Input Voltage (Max): 36V
  • Output Voltage: 12V
  • Efficiency: 86%
  • Features: Remote On/Off, OCP, OTP, OVP
  • Package: 13-DIP module
  • Mounting Type: Board Mount
  • Application: ITE (Commercial)
