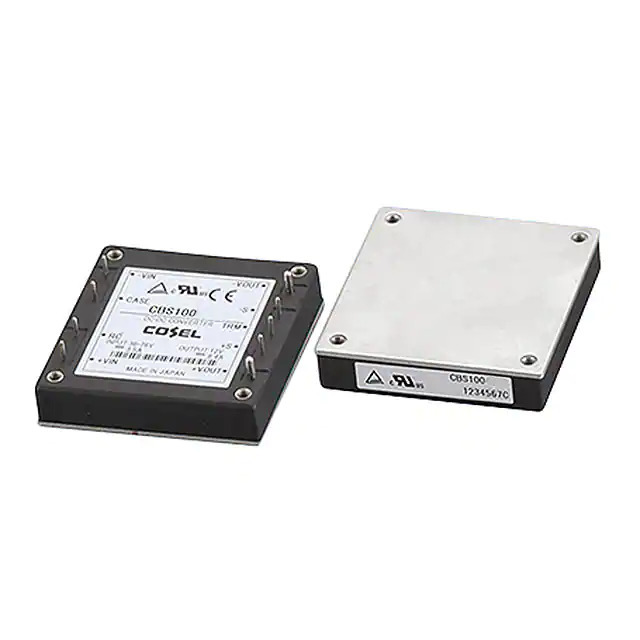

Same model may have multiple batches, images only for reference.
CBS1002424 Cosel USA, Inc.
Same model may have multiple batches, images only for reference.

CBS1002424

Part No CBS1002424
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 24V / Isolated Module DC DC Converter 1 Output 24V 4.2A 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series CBS (100W)
Package Box
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 24V
Voltage - Output 2 -
Voltage - Output 3 -
Current - Output (Max) 4.2A
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP
Temperature Range - Operating -40°C ~ 100°C (With Derating)
Efficiency 87%
Mounting Type Through Hole
Package / Case 9-DIP Module
Size / Dimension 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Supplier Device Package -
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1355441-CBS1002424
Ultra Librarian 3D Model Ultra Librarian CBS1002424 CAD Model

Description

The Cosel USA CBS1002424 is a 100W isolated module DC-DC converter.

  • Temperature Range: -40°C to 100°C (with derating)
  • Voltage Input: 18V to 36V
  • Output Voltage: 24V
  • Maximum Output Current: 4.2A
  • Efficiency: 87%
  • Application: ITE (Commercial)
  • Features: Remote on/off, overcurrent protection (OCP), overtemperature protection (OTP), and overvoltage protection (OVP)
  • Package: 9-DIP module
  • Mounting Type: Through-hole
  • Status: Active
