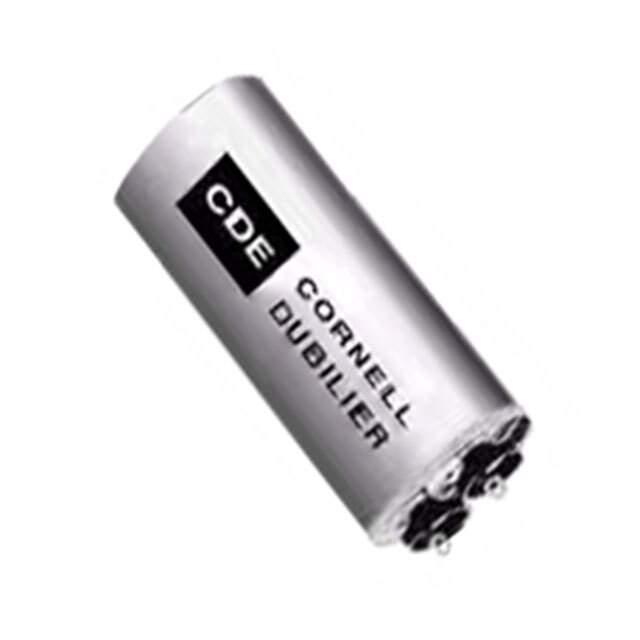

SNU202K503R-F Real Image
Same model may have multiple batches, images only for reference.

SNU202K503R-F

Part No SNU202K503R-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Datasheet
SNU202K503R-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SNU
Capacitance 0.05 µF
Tolerance ±10%
Voltage Rating - AC 2000Vpk (2KVPK)
Dielectric Material Paper, Metallized
Temperature Range - Operating -50°C ~ 70°C
Mounting Type Chassis Mount
Package / Case Radial, Can
Dimension 2.100" L x 1.810" W (53.34mm x 45.97mm)
Height - Seated (Max) 2.134" (54.20mm)
Termination Solder Lug
Lead Spacing 0.810" (20.57mm)
Applications High Pulse, DV/DT; Snubber
Standard Package 10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0040
Win Source Part Number 1302438-SNU202K503R-F
Ultra Librarian 3D Model Ultra Librarian SNU202K503R-F CAD Model

Description

The SNU202K503R-F is a film capacitor from Cornell Dubilier Electronics (CDE) with a capacitance of 0.05 µF and a voltage rating of 2000Vpk (2KVPK).

  • Capacitance: 0.05 µF
  • Voltage Rating (AC): 2000Vpk (2KVPK)
  • Applications: High pulse and snubber applications
  • Height: 2.134" (54.20mm)
  • Mounting Type: Chassis-mounted
  • Dimension: 2.100" L x 1.810" W (53.34mm x 45.97mm)
  • Packaging: Radial, Can
  • Tolerance: ±10%
  • Lead Spacing: 0.810" (20.57mm)
  • Lifetime @ Temperature: Not specified
