Same model may have multiple batches, images only for reference.

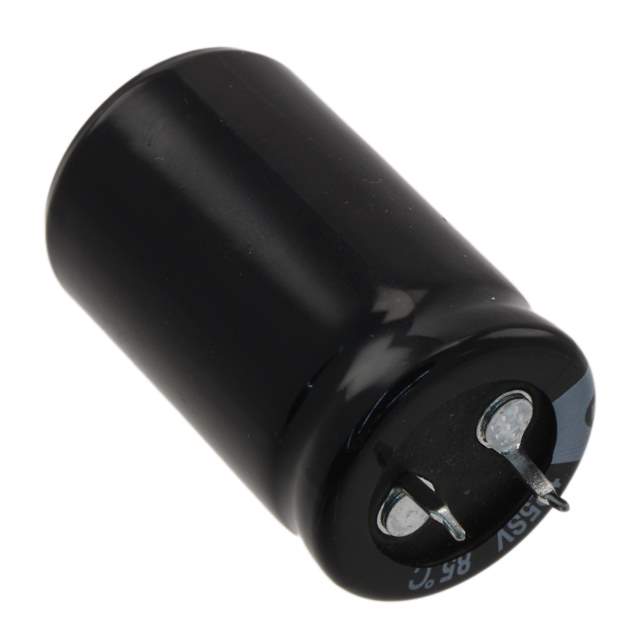

SLPX681M180C3P3 Real Image
Same model may have multiple batches, images only for reference.

SLPX681M180C3P3

Part No SLPX681M180C3P3
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Datasheet
SLPX681M180C3P3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SLPX
Package Bulk
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 180 V
ESR (Equivalent Series Resistance) 293mOhm @ 120Hz
Lifetime @ Temp. 3000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 2.5 A @ 120 Hz
Ripple Current @ High Frequency 3.68 A @ 20 kHz
Lead Spacing 0.394" (10.00mm)
Dimension 0.984" Dia (25.00mm)
Height - Seated (Max) 1.181" (30.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1307539-SLPX681M180C3P3
Ultra Librarian 3D Model Ultra Librarian SLPX681M180C3P3 CAD Model

Description

The Cornell Dubilier Electronics (CDE) SLPX681M180C3P3 is an aluminum electrolytic capacitor with a capacitance of 680 µF and a voltage rating of 180 V.

  • Capacitance: 680 µF
  • Voltage Rating: 180 V
  • Tolerance: ±20%
  • ESR: 293mOhm @ 120Hz
  • Polarization: Polarized
  • Package: Radial, can - snap-in
  • Application: General purpose
  • Lifetime: 3000 Hrs @ 85°C
  • Lead Spacing: 0.394" (10.00mm)
  • Height: 1.181" (30.00mm)
  • Series: SLPX series capacitor
  • Ripple Current: 2.5 A @ 120 Hz
  • Ripple Current: 3.68 A @ 20 kHz
  • Surface Mount Land Size: -
  • Mounting Type: Through-hole
  • Operating Temperature: -40°C ~ 85°C
