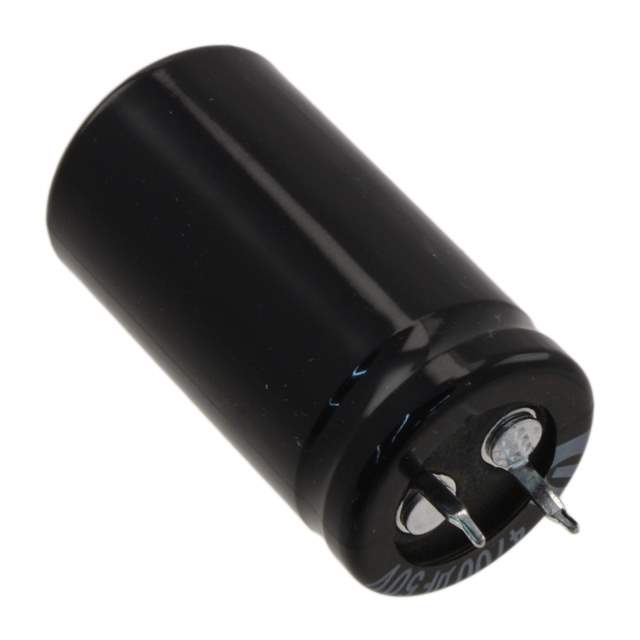

Same model may have multiple batches, images only for reference.

SLPX562M025A1P3

Name: SLPX562M025A1P3
Brand: Cornell Dubilier Electronics (CDE)
SKU: 1307554
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SLPX562M025A1P3
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Datasheet	SLPX562M025A1P3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	SLPX
Package	Bulk
Capacitance	5600 µF
Tolerance	±20%
Voltage - Rated	25 V
ESR (Equivalent Series Resistance)	107mOhm @ 120Hz
Lifetime @ Temp.	3000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	2.31 A @ 120 Hz
Ripple Current @ High Frequency	2.89 A @ 20 kHz
Lead Spacing	0.394" (10.00mm)
Dimension	0.866" Dia (22.00mm)
Height - Seated (Max)	0.984" (25.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Other Names	338-3811,SLPX562M025A1P3
Standard Package	100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1307554-SLPX562M025A1P3
Ultra Librarian 3D Model	Ultra Librarian SLPX562M025A1P3 CAD Model

Description

The Cornell Dubilier Electronics (CDE) SLPX562M025A1P3 is an aluminum electrolytic capacitor with a capacitance of 5600 μF and a voltage rating of 25 V.

Capacitance: 5600 μF
Voltage Rating: 25 V
Tolerance: ±20%
ESR: 107 mOhm @ 120 Hz
Polarization: Polarized
Series: SLPX series
Application: General-purpose applications
Mounting Type: Through-hole
Package: Radial, can-snap-in
Diameter: 0.866 inches
Height: 0.984 inches
Lifetime: 3000 hours @ 85°C
Operating Temperature: -40°C to 85°C
Manufacturer: CDE
Standard Package: 100 units
