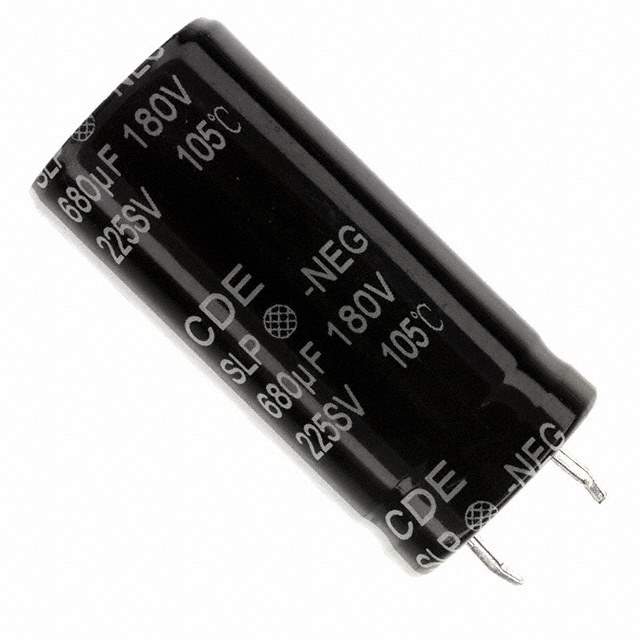

Same model may have multiple batches, images only for reference.

SLP561M220A4P3

Name: SLP561M220A4P3
Brand: Cornell Dubilier Electronics (CDE)
SKU: 1307876
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SLP561M220A4P3
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Datasheet	SLP561M220A4P3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	SLP0712TE (750W)
Package	Bulk
Capacitance	560 µF
Tolerance	±20%
Voltage - Rated	220 V
ESR (Equivalent Series Resistance)	355mOhm @ 120Hz
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-25°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	1.7 A @ 120 Hz
Ripple Current @ High Frequency	2.5 A @ 20 kHz
Lead Spacing	0.394" (10.00mm)
Dimension	0.866" Dia (22.00mm)
Height - Seated (Max)	1.772" (45.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Standard Package	100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1307876-SLP561M220A4P3
Ultra Librarian 3D Model	Ultra Librarian SLP561M220A4P3 CAD Model

Description

The Cornell Dubilier Electronics (CDE) SLP0712TE (750W) series aluminum electrolytic capacitor is a high-quality component designed for general-purpose use.

Capacitance: 560 µF
Voltage Rating: 220 V
Tolerance: ±20%
ESR: 355mOhm @ 120Hz
Polarization: Polarized
Mounting Type: Through-hole
Package/Case: Radial, can-snap-in
Height: 1.772" (45.00mm)
Diameter: 0.866" (22.00mm)
Temperature Range: -25°C to 105°C
Lifetime: 3000 hours @ 105°C
