Same model may have multiple batches, images only for reference.

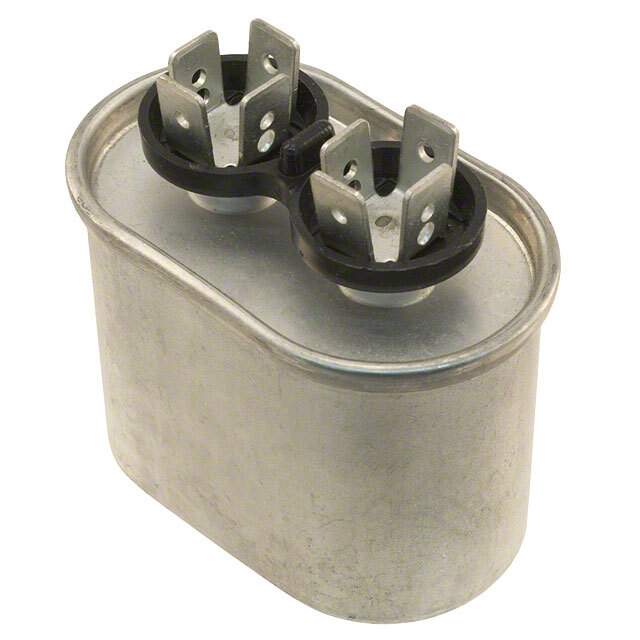

SFA66S1K156B-F Real Image
Same model may have multiple batches, images only for reference.

SFA66S1K156B-F

Part No SFA66S1K156B-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Datasheet
SFA66S1K156B-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SF
Package Bulk
Product Status Obsolete
Capacitance 1 µF
Tolerance ±10%
Voltage Rating - AC 660V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C ~ 70°C
Mounting Type Chassis Mount, Requires Holder/Bracket
Package / Case Radial, Can
Dimension 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip
Height - Seated (Max) 1.680" (42.67mm)
Termination Quick Connect, Disconnect
Lead Spacing 0.810" (20.57mm)
Applications Motor Run
Other Names SFA66S1K156BF,SFA66S1K156B-F,338-1883
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0030
Win Source Part Number 1302538-SFA66S1K156B-F
Ultra Librarian 3D Model Ultra Librarian SFA66S1K156B-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) 1302538-SFA66S1K156B-F film capacitor is a high-quality component designed for motor run applications.

  • Application: Motor Run
  • Capacitance: 1 µF
  • Tolerance: ±10%
  • Dielectric Material: Polypropylene (PP), Metallized
  • Mounting: Chassis Mount, requires a Holder/Bracket
  • Voltage Rating: 660V AC
  • Temperature Range: -40°C ~ 70°C
  • Package/Case: Radial and Can
  • Termination: Quick Connect and Disconnect
  • Dimensions: 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip
  • Lead Spacing: 0.810" (20.57mm)
  • Packaging: Bulk
  • ECCN: EAR99
