Same model may have multiple batches, images only for reference.

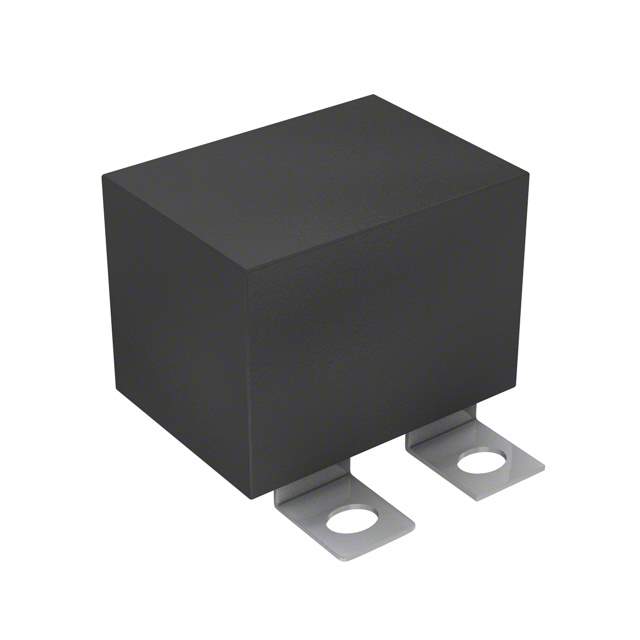

SCD684K202A3Z25-F Real Image
Same model may have multiple batches, images only for reference.

SCD684K202A3Z25-F

Part No SCD684K202A3Z25-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Datasheet
SCD684K202A3Z25-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SCD
Package Bulk
Capacitance 0.68 µF
Tolerance ±10%
Voltage Rating - AC 630V
Voltage Rating - DC 2000V (2kV)
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 8 mOhms
Temperature Range - Operating -55°C ~ 85°C
Mounting Type Chassis Mount
Package / Case Rectangular Box
Dimension 2.051" L x 1.500" W (52.10mm x 38.10mm)
Height - Seated (Max) 1.500" (38.10mm)
Termination Screw Terminals
Lead Spacing 1.000" (25.40mm)
Applications Snubber
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0080
Win Source Part Number 1302668-SCD684K202A3Z25-F
Ultra Librarian 3D Model Ultra Librarian SCD684K202A3Z25-F CAD Model

Description

This capacitor is part of the SCD series and is manufactured by Cornell Dubilier Electronics (CDE).

  • Application: Snubber applications
  • Capacitance: 0.68 µF
  • Tolerance: ±10%
  • Voltage Rating (AC): 630V
  • Voltage Rating (DC): 2000V (2kV)
  • ESR (Equivalent Series Resistance): 8 mOhms
  • Dielectric Material: Polypropylene (PP), Metallized
  • Mounting Type: Chassis mount
  • Package/Case: Rectangular box
  • Temperature Range: -55°C to 85°C
  • Dimensions: 2.051" L x 1.500" W (52.10mm x 38.10mm)
