Same model may have multiple batches, images only for reference.

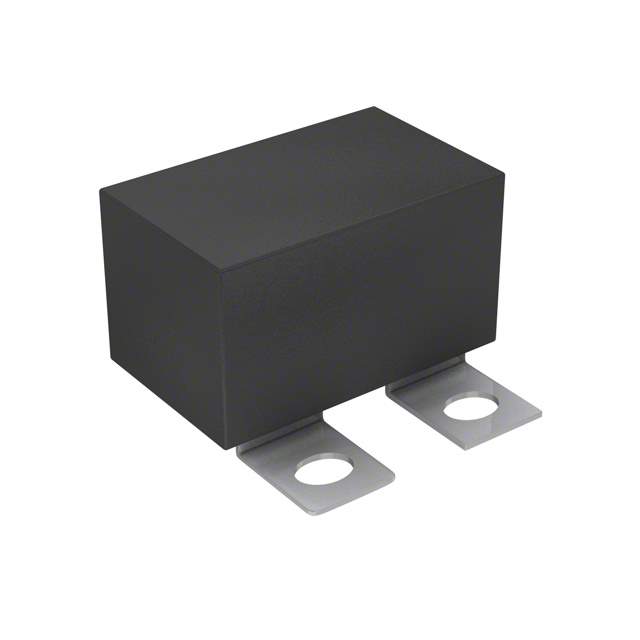

SCD474K122A3Z25-F Real Image
Same model may have multiple batches, images only for reference.

SCD474K122A3Z25-F

Part No SCD474K122A3Z25-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Datasheet
SCD474K122A3Z25-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SCD
Package Bulk
Capacitance 0.47 µF
Tolerance ±10%
Voltage Rating - AC 580V
Voltage Rating - DC 1200V (1.2kV)
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 10 mOhms
Temperature Range - Operating -55°C ~ 85°C
Mounting Type Chassis Mount
Package / Case Rectangular Box
Dimension 1.850" L x 1.142" W (47.00mm x 29.00mm)
Height - Seated (Max) 1.051" (26.70mm)
Termination Screw Terminals
Lead Spacing 1.000" (25.40mm)
Applications Snubber
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0080
Win Source Part Number 1302673-SCD474K122A3Z25-F
Ultra Librarian 3D Model Ultra Librarian SCD474K122A3Z25-F CAD Model

Description

The SCD series film capacitor is a high-quality component designed for use in snubber applications.

  • Application: Snubber applications
  • Capacitance: 0.47 μF
  • Tolerance: ±10%
  • Voltage Rating (AC): 580V
  • Voltage Rating (DC): 1200V
  • ESR (Equivalent Series Resistance): 10 mOhms
  • Dielectric Material: Polypropylene (PP), Metallized
  • Mounting Type: Chassis mount
  • Package/Case: Rectangular box
  • Temperature Range: -55°C to 85°C
  • Manufacturer: Cornell Dubilier Electronics (CDE)
  • Packaging: Bulk packaging
  • Termination: Screw terminals
