Same model may have multiple batches, images only for reference.

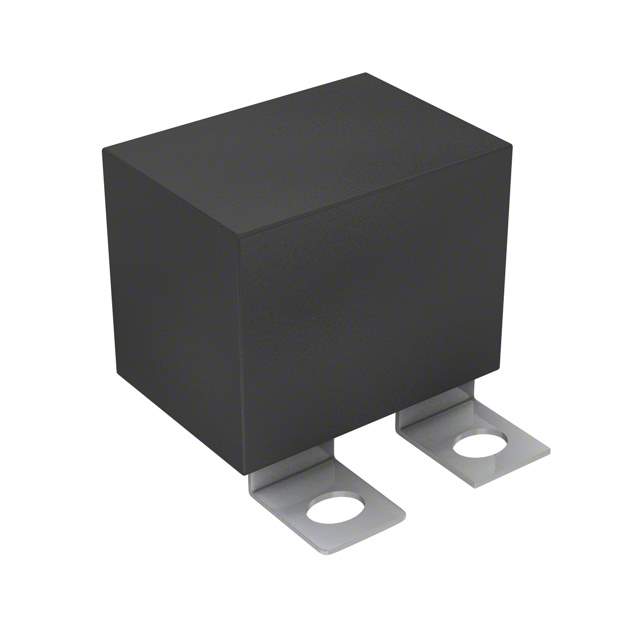

SCD205K601A3Z25 Real Image
Same model may have multiple batches, images only for reference.

SCD205K601A3Z25

Part No SCD205K601A3Z25
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Datasheet
SCD205K601A3Z25 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SCD
Package Bulk
Product Status Obsolete
Capacitance 2 µF
Tolerance ±10%
Voltage Rating - AC 300V
Voltage Rating - DC 600V
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 3 mOhms
Temperature Range - Operating -55°C ~ 85°C
Mounting Type Chassis Mount
Package / Case Rectangular Box
Dimension 1.776" L x 1.272" W (45.10mm x 32.30mm)
Height - Seated (Max) 1.402" (35.60mm)
Termination Screw Terminals
Lead Spacing 1.000" (25.40mm)
Applications Snubber
Standard Package 14
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0080
Win Source Part Number 1302657-SCD205K601A3Z25
Ultra Librarian 3D Model Ultra Librarian SCD205K601A3Z25 CAD Model

Description

The Cornell Dubilier Electronics (CDE) SCD205K601A3Z25 is a 2 µF film capacitor used in snubber applications.

  • Series: SCD series
  • Capacitance Tolerance: ±10%
  • Termination: Screw terminals
  • Packaging: Supplied in bulk packaging
  • Voltage Rating AC: 300V
  • Voltage Rating DC: 600V
  • ESR (Equivalent Series Resistance): 3 mOhms
  • Height - Seated (max): 1.402" (35.60mm)
  • Package/Case: Rectangular box
  • Mounting: Chassis mount technology
  • Dimension: 1.776" L x 1.272" W (45.10mm x 32.30mm)
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8532.25.0080
  • Product Status: Obsolete
  • RoHS Compliant: No
