Same model may have multiple batches, images only for reference.

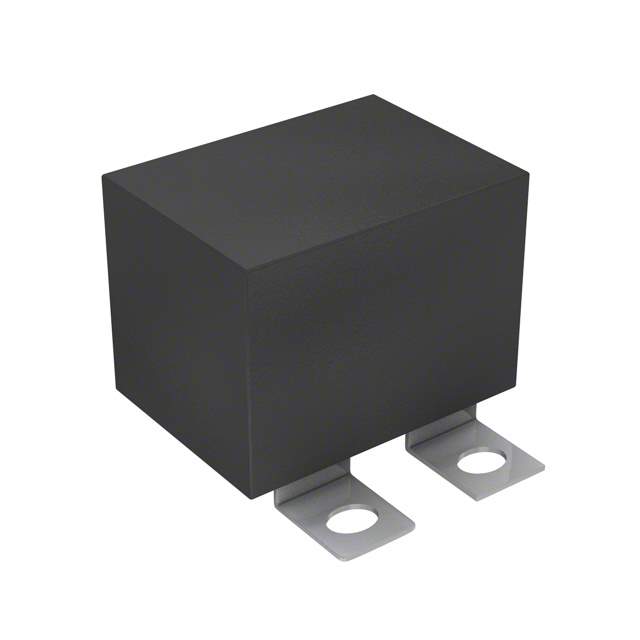

SCD205K102D3Z25-F Real Image
Same model may have multiple batches, images only for reference.

SCD205K102D3Z25-F

Part No SCD205K102D3Z25-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Datasheet
SCD205K102D3Z25-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SCD
Package Bulk
Capacitance 2 µF
Tolerance ±10%
Voltage Rating - AC 500V
Voltage Rating - DC 1000V (1kV)
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 5 mOhms
Temperature Range - Operating -55°C ~ 85°C
Mounting Type Chassis Mount
Package / Case Rectangular Box
Dimension 2.051" L x 1.500" W (52.10mm x 38.10mm)
Height - Seated (Max) 1.500" (38.10mm)
Termination Screw Terminals
Lead Spacing 1.000" (25.40mm)
Applications Snubber
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0080
Win Source Part Number 1302661-SCD205K102D3Z25-F
Ultra Librarian 3D Model Ultra Librarian SCD205K102D3Z25-F CAD Model

Description

The SCD205K102D3Z25-F is a film capacitor manufactured by Cornell Dubilier Electronics (CDE).

  • Component Family: Common mode choke
  • Capacitance: 2 µF
  • Voltage Rating - AC: 500V
  • ESR (Equivalent Series Resistance): 5 mOhms
  • Dielectric Material: Polypropylene (PP), metallized
  • Application: Designed for use in snubber applications
  • Mounting: Chassis mount
  • Termination: Screw terminals
  • Package: Rectangular box package
