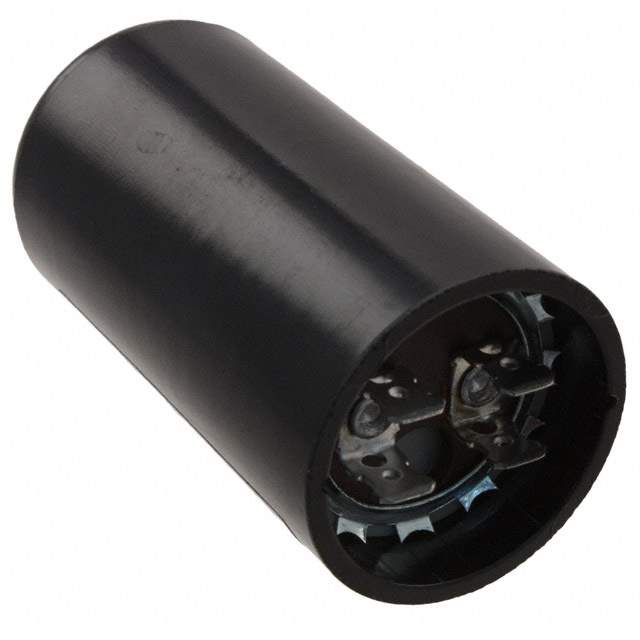

Same model may have multiple batches, images only for reference.

PSU10815

Name: PSU10815
Brand: Cornell Dubilier Electronics (CDE)
SKU: 1146793
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PSU10815
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Description	CAP ALUM 108UF 125V QC TERM / 108 µF 125 V Aluminum Electrolytic Capacitors Radial, Can - QC Terminals
Datasheet	PSU10815 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	PSU
Package	Bulk
Capacitance	108 µF
Tolerance	0%, +20%
Voltage - Rated	125 V
Temperature Range - Operating	-40°C ~ 65°C
Polarization	Bi-Polar
Applications	Motor Start
Dimension	1.438" Dia (36.53mm)
Height - Seated (Max)	2.810" (71.37mm)
Mounting Type	Chassis Mount
Package / Case	Radial, Can - QC Terminals
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0055
Other Names	PSU10815-ND,338-3341,2266-PSU10815
Standard Package	100
Win Source Part Number	1146793-PSU10815
Ultra Librarian 3D Model	Ultra Librarian PSU10815 CAD Model

Description

The PSU series aluminum electrolytic capacitor is designed for motor start applications by Cornell Dubilier Electronics (CDE).

Capacitance: 108 µF
Voltage Rating: 125 V
Application: Motor Start
Polarity: Bi-Polar
Mounting Type: Chassis Mount
Package: Radial, Can-QC Terminals
Operating Temperature Range: -40°C to 65°C
