Same model may have multiple batches, images only for reference.

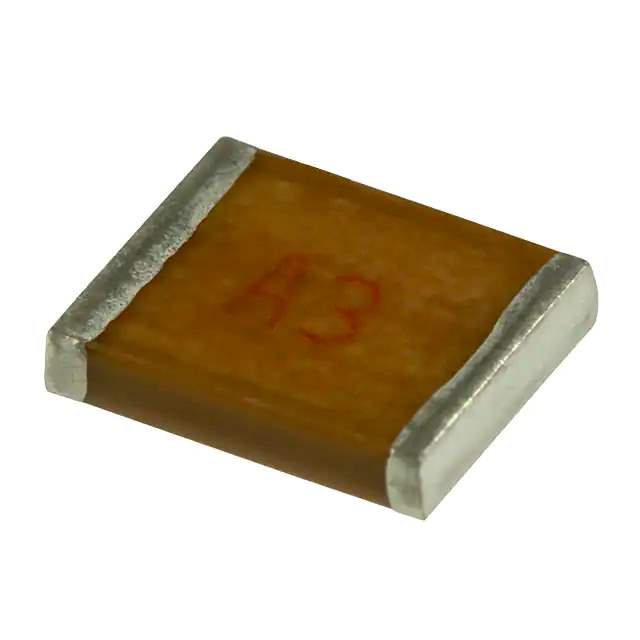

MC22FD102J Real Image
Same model may have multiple batches, images only for reference.

MC22FD102J

Part No MC22FD102J
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 1000PF 5% 500V 2220 / 1000 pF Mica Capacitor 500 V 2220 (5750 Metric)
Datasheet
MC22FD102J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Mica and PTFE Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series MC
Package Bulk
Product Status Obsolete
Capacitance 1000 pF
Tolerance ±5%
Voltage - Rated 500 V
Dielectric Material Mica
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case 2220 (5750 Metric)
Features RF, High Q, Low Loss
Size / Dimension 0.224" L x 0.197" W (5.70mm x 5.00mm)
Height - Seated (Max) 0.079" (2.00mm)
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.29.0020
Win Source Part Number 883348-MC22FD102J
Ultra Librarian 3D Model Ultra Librarian MC22FD102J CAD Model

Description

The 883348-MC22FD102J is a mica and PTFE capacitor from the MC series.

  • Application: RF, high Q, and low loss
  • Package: Bulk
  • Size: 0.224" L x 0.197" W (5.70mm x 5.00mm)
  • Seated Height: 0.079" (2.00mm)
  • Capacitance: 1000 pF
  • Tolerance: ±5%
  • Voltage Rating: 500V
  • Dielectric Material: Mica
  • Mounting: Surface Mount
  • Case: 2220 (5750 Metric)
  • Manufacturer: Cornell Dubilier Electronics (CDE)
