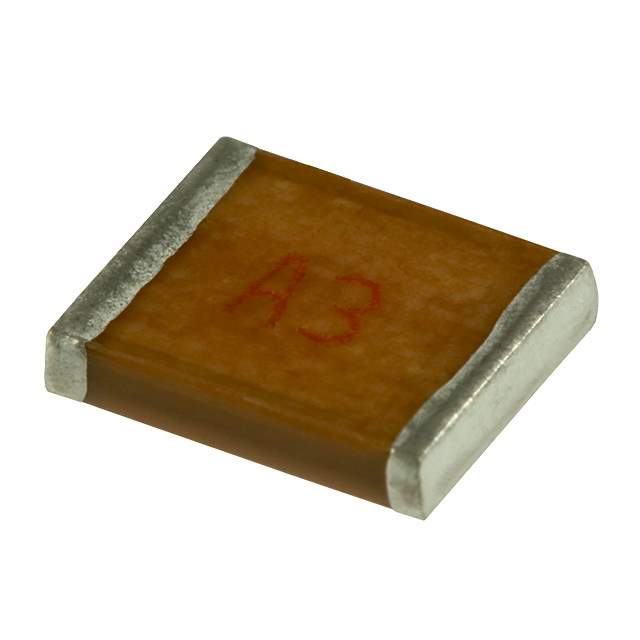

MC22FA102F-TF Real Image
Same model may have multiple batches, images only for reference.

MC22FA102F-TF

Part No MC22FA102F-TF
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 1000PF 1% 100V 2220 / Cap Mica 0.001uF 100V 1% (5.7 X 5 X 2mm) SMD 125°C T/R
Datasheet
MC22FA102F-TF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series MC
Packaging Reel package
Capacitance 1000pF
Tolerance ±1%
Voltage Rating DC 100V
Dielectric Material Mica
Operating Temperature Range -55°C ~ 125°C
Mounting SMD
Package 2220 (5750 Metric)
Features RF, High Q, Low Loss
Dimension 0.224" L x 0.197" W (5.70mm x 5.00mm)
Height - Seated (Maximum) 0.079" (2.00mm)
Win Source Part Number 777923-MC22FA102F-TF
Popularity Medium
Supply and Demand Status Limited
Family Name MC
Introduction Date March 14, 2002
ECCN EAR99
Country of Origin Mexico, United States of America
Halogen Free Compliant
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian MC22FA102F-TF CAD Model

Description

The Cornell Dubilier Electronics (CDE) MC22FA102F-TF capacitor is a high-quality, low-loss, high-Q RF capacitor designed for a wide range of electrical projects.

  • Capacitance: 1000pF
  • Voltage Rating: 100V
  • Series: MC
  • Package: SMD
  • Height: 0.079 inches (2.00mm)
  • Dimension: 0.224 inches L x 0.197 inches W (5.70mm x 5.00mm)
  • Tolerance: ±1%
  • Dielectric Material: Mica
