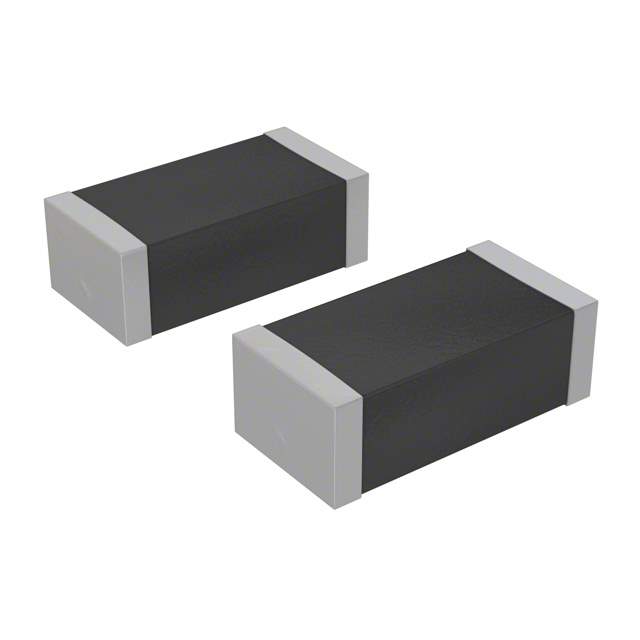

FCP1206H682G-H1 Real Image
Same model may have multiple batches, images only for reference.

FCP1206H682G-H1

Part No FCP1206H682G-H1
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Description CAP FILM 6800PF 2% 50VDC 1206 / 6800 pF Film Capacitor 50V Polyphenylene Sulfide (PPS) 1206 (3216 Metric)
Datasheet
FCP1206H682G-H1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series FCP
Package Tape & Reel (TR)
Capacitance 6800 pF
Tolerance ±2%
Voltage Rating - DC 50V
Dielectric Material Polyphenylene Sulfide (PPS)
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.043" (1.09mm)
Termination Solder Pads
Applications High Frequency, Switching
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0045
Standard Package 3,000
Win Source Part Number 1001584-FCP1206H682G-H1
Ultra Librarian 3D Model Ultra Librarian FCP1206H682G-H1 CAD Model

Description

The Cornell Dubilier Electronics (CDE) FCP1206H682G-H1 is a film capacitor with a capacitance of 6800 pF and a voltage rating of 50V.

  • Capacitance: 6800 pF
  • Voltage Rating: 50V
  • Tolerance: ±2%
  • Applications: High frequency and switching applications
  • Mounting Style: SMD (SMT)
  • Packaging: Tape and Reel
  • Standard Package: 3000
  • Material: Polyphenylene sulfide (PPS)
  • Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • RoHS: Compliant
  • Operating Temperature: -55°C to 125°C
