Same model may have multiple batches, images only for reference.

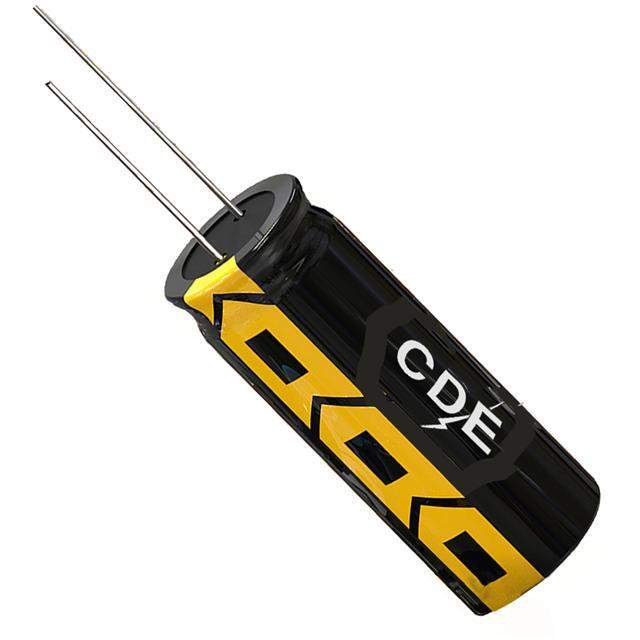

DSF256Q3R0 Real Image
Same model may have multiple batches, images only for reference.

DSF256Q3R0

Part No DSF256Q3R0
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Electric Double Layer Capacitors, Supercaps
Description 25F 3.0V 16*25 / 25 F (EDLC) Supercapacitor 3 V Radial, Can 25mOhm @ 1kHz 1000 Hrs @ 65°C
Datasheet
DSF256Q3R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr Cornell Dubilier / Illinois Capacitor
Series DSF
Package Bulk
Capacitance 25 F
Tolerance -10%, +30%
Voltage - Rated 3 V
ESR (Equivalent Series Resistance) 25mOhm @ 1kHz
Lifetime @ Temp. 1000 Hrs @ 65°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Radial, Can
Lead Spacing 0.295" (7.50mm)
Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Temperature Range - Operating -40°C ~ 65°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.29.0040
Other Names 1572-DSF256Q3R0
Standard Package 100
Win Source Part Number 1170268-DSF256Q3R0
Ultra Librarian 3D Model Ultra Librarian DSF256Q3R0 CAD Model

Description

The DSF series electric double-layer capacitors are an ideal choice for applications requiring high power density and long life cycles.

  • Capacitance: 25 F
  • Voltage Rating: 3 V
  • ESR (Equivalent Series Resistance): 25mOhm @ 1kHz
  • Temperature Range: -40°C to 65°C
  • Package: radial can
  • Mounting: through-hole
  • Lifetime: 1000 Hrs @ 65°C
