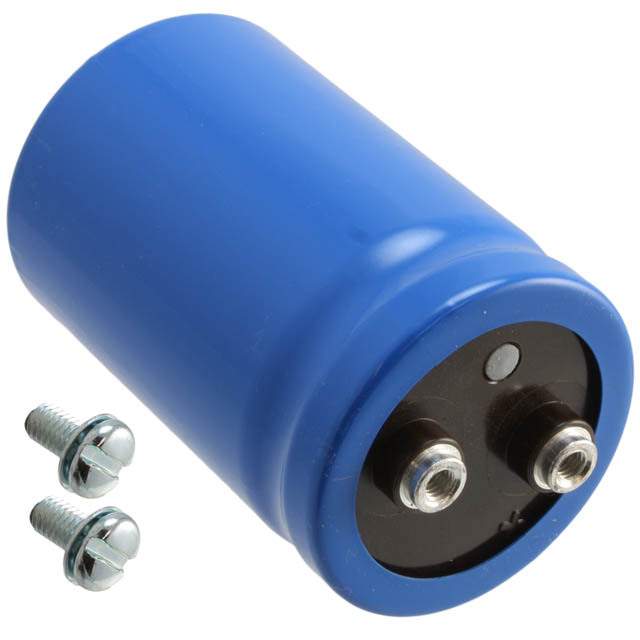

CGS132T350V3C Real Image
Same model may have multiple batches, images only for reference.

CGS132T350V3C

Part No CGS132T350V3C
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 1300UF 350V SCREW / Cap Aluminum Lytic 1300uF 350V -10% to 50% (50.8 X 79.38mm) Screw Terminal 0.085 Ohm 4300mA 2000h 85°C
Datasheet
CGS132T350V3C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series CGS
Packaging Bulk
Capacitance 1300μF
Tolerance -10%, +50%
Voltage Rating DC 350V
ESR (Equivalent Series Resistance) 85 mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 4.3A @ 120Hz
Ripple Current - High Frequency 6.45A @ 10kHz
Dimension 2.000" Dia (50.80mm)
Height - Seated (Maximum) 3.125" (79.38mm)
Mounting Chassis Mount
Package Radial, Can - Screw Terminals
Win Source Part Number 775486-CGS132T350V3C
Popularity Medium
Supply and Demand Status Balance
Family Name CGS
Introduction Date August 30, 2005
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian CGS132T350V3C CAD Model

Description

The Cornell Dubilier Electronics (CDE) electronic component with the Win Source Part Number 775486-CGS132T350V3C is a capacitor that belongs to the CGS series.

  • Packaging: Bulk
  • Mounting: Chassis Mount
  • Application: General
  • Capacitance: 1300μF
  • Tolerance: -10%, +50%
  • ESR (Equivalent Series Resistance): 85 mOhm @ 120Hz
  • Lifetime: 2000 Hrs @ 85°C
  • Polarization: Polarized
  • Voltage Rating DC: 350V
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Dimension: 2.000" Dia (50.80mm)
  • Height Seated (Maximum): 3.125" (79.38mm)
  • Manufacturer: Cornell Dubilier Electronics (CDE)
