Same model may have multiple batches, images only for reference.

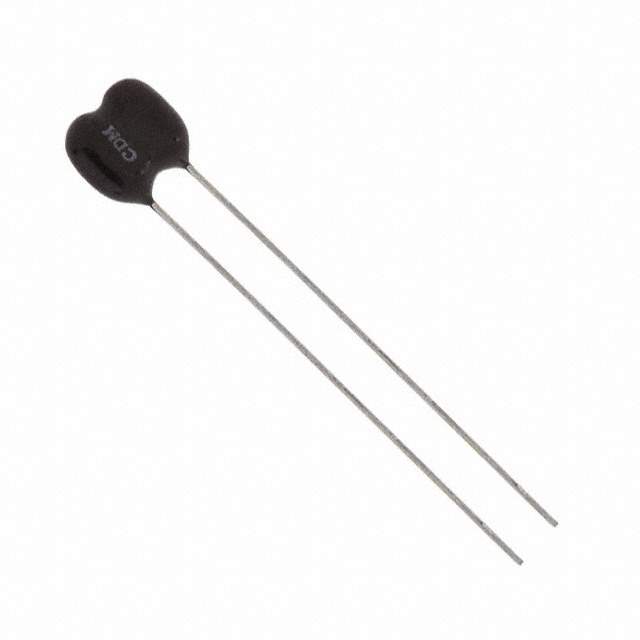

CD10CD100CO3 Real Image
Same model may have multiple batches, images only for reference.

CD10CD100CO3

Part No CD10CD100CO3
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 10PF 1PF 500V RADIAL / Cap Mica 10pF 500V 1pF (9.1 X 4.8 X 8.4mm) Radial 3.6mm 125°C T/R
Datasheet
CD10CD100CO3 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series CD10
Packaging Bulk
Capacitance 10pF
Tolerance ±1pF
Voltage Rating DC 500V
Dielectric Material Mica
Operating Temperature Range -55°C ~ 125°C
Mounting Style Through Hole
Package Radial
Lead Spacing 0.142" (3.60mm)
Features General
Dimension 0.360" L x 0.189" W (9.15mm x 4.80mm)
Height - Seated (Maximum) 0.331" (8.40mm)
Win Source Part Number 771320-CD10CD100CO3
Popularity Medium
Supply and Demand Status Limited
Family Name CD10
Introduction Date September 12, 2002
ECCN EAR99
Country of Origin Mexico, United States of America
Ultra Librarian 3D Model Ultra Librarian CD10CD100CO3 CAD Model

Description

The Cornell Dubilier Electronics (CDE) CD10 series capacitor is a radial through-hole component.

  • Capacitance: 10pF
  • Dielectric Material: Mica
  • Tolerance: ±1pF
  • Voltage Rating DC: 500V
  • Lead Spacing: 0.142 inches (3.60mm)
  • Dimension: 0.360 inches L x 0.189 inches W (9.15mm x 4.80mm)
  • Height: 0.331 inches (8.40mm)
  • Operating Temperature: -55°C to 125°C
  • Package: Bulk
