Same model may have multiple batches, images only for reference.

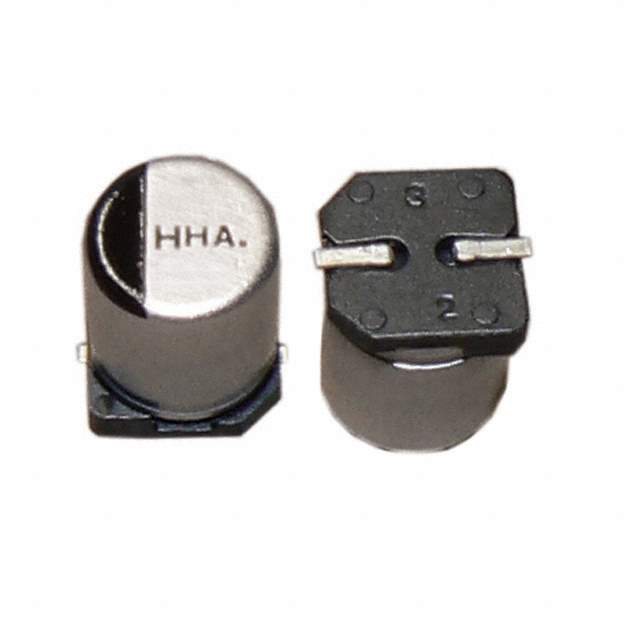

AHA336M06B12T-F Real Image
Same model may have multiple batches, images only for reference.

AHA336M06B12T-F

Part No AHA336M06B12T-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 33UF 20% 6.3V SMD / Cap Aluminum Lytic 33uF 6.3V 20% (4 X 5.4mm) SMD 17.6 Ohm 29mA 1000h 105°C Automotive T/R
Datasheet
AHA336M06B12T-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series AHA
Packaging Reel package
Capacitance 33μF
Tolerance ±20%
Voltage Rating DC 6.3V
ESR (Equivalent Series Resistance) 17.6 Ohm @ 120Hz
Lifetime @ Temp. 1000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 29mA @ 120Hz
Ripple Current - High Frequency 49.3mA @ 10kHz
Dimension 0.157" Dia (4.00mm)
Height - Seated (Maximum) 0.213" (5.40mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 777744-AHA336M06B12T-F
Popularity Medium
Supply and Demand Status Balance
Family Name AHA
Introduction Date March 30, 2009
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian AHA336M06B12T-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) AHA336M06B12T-F is a 33μF polarized capacitor that operates at a voltage rating DC of 6.3V.

  • Package: Radial, can-SMD
  • Surface Mount Land Size: 0.169" L x 0.169" W (4.30mm x 4.30mm)
  • Operating Temperature Range: -55°C ~ 105°C
  • Application: General
  • Capacitance Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 17.6 Ohm @ 120Hz
  • Lifetime @ temp: 1000 Hrs @ 105°C
  • Ripple Current (Low Frequency): 29mA @ 120Hz
  • Ripple Current (High Frequency): 49.3mA @ 10kHz
  • Height - seated (maximum): 0.213" (5.40mm)
  • Series: AHA
  • Category: Capacitors
  • Introduction Date: March 30, 2009
  • Estimated EOL Date: 2027
  • Supply and Demand Status: Balance
