Same model may have multiple batches, images only for reference.

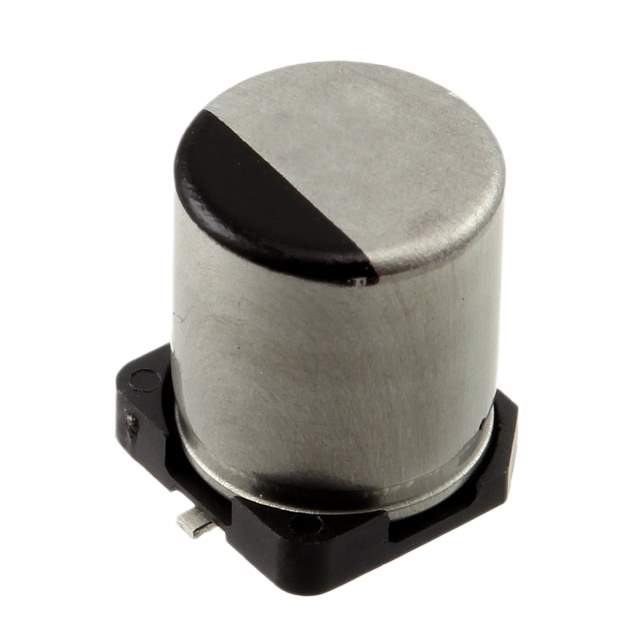

AHA107M35X16T-F Real Image
Same model may have multiple batches, images only for reference.

AHA107M35X16T-F

Part No AHA107M35X16T-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 35V SMD / Cap Aluminum Lytic 100uF 35V 20% (6.3 X 7.9mm) SMD 2 Ohm 84mA 1000h 105°C Automotive T/R
Datasheet
AHA107M35X16T-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series AHA
Packaging Reel package
Capacitance 100μF
Tolerance ±20%
Voltage Rating DC 35V
ESR (Equivalent Series Resistance) 2 Ohm @ 120Hz
Lifetime @ Temp. 1000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 84mA @ 120Hz
Ripple Current - High Frequency 142.8mA @ 10kHz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Maximum) 0.303" (7.70mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 777736-AHA107M35X16T-F
Popularity Medium
Supply and Demand Status Limited
Family Name AHA
Introduction Date March 05, 2002
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian AHA107M35X16T-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) AHA series aluminum electrolytic capacitors are a reliable and cost-effective solution for general purpose applications.

  • Capacitance: 100μF
  • Voltage Rating: 35V
  • Tolerance: ±20%
  • ESR: 2 Ohm @ 120Hz
  • Lifetime: 1000 hours @ 105°C
  • Polarization: Polarized
  • Package / Case: Radial, Can-SMD
  • Diameter: 0.248”
  • Height: 0.303”
  • Mounting Type: Surface Mount
  • Surface Mount Land Size: 0.260” L x 0.260” W
  • Operating Temperature: -55°C to 105°C
  • Packaging: Reel
