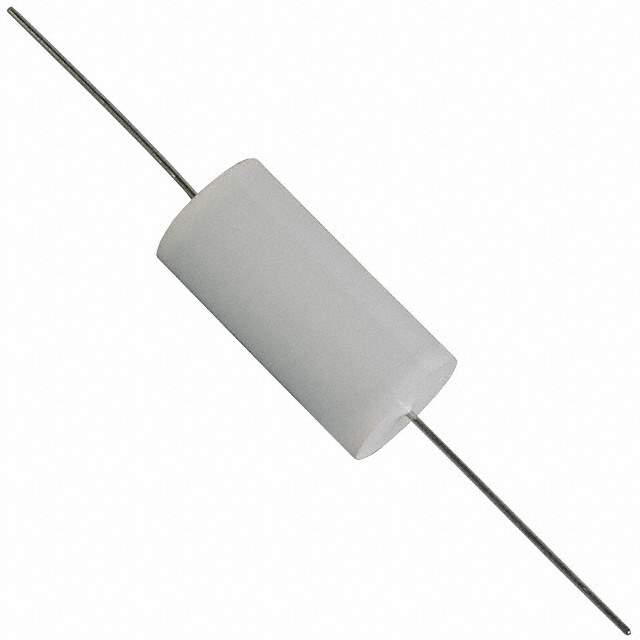

940C20S22K-F Real Image
Same model may have multiple batches, images only for reference.

940C20S22K-F

Part No 940C20S22K-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Description CAP FILM 0.022UF 10% 2KVDC AXIAL / 0.022 µF Film Capacitor 500V 2000V (2kV) Polypropylene (PP), Metallized Axial
Datasheet
940C20S22K-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series 940C
Package Bulk
Capacitance 0.022 µF
Tolerance ±10%
Voltage Rating - AC 500V
Voltage Rating - DC 2000V (2kV)
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 35 mOhms
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Axial
Dimension 0.453" Dia x 1.339" L (11.50mm x 34.00mm)
Termination PC Pins
Applications High Pulse, DV/DT
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0060
Other Names 940C20S22KF,338-1445,940C20S22K-F-ND
Standard Package 25
Win Source Part Number 1218435-940C20S22K-F
Ultra Librarian 3D Model Ultra Librarian 940C20S22K-F CAD Model

Description

This capacitor is part of the 940C series from Cornell Dubilier Electronics (CDE).

  • Capacitance: 0.022 µF
  • Tolerance: ±10%
  • ESR: 35 mOhms
  • Dielectric Material: Polypropylene (PP), Metallized
  • Voltage Rating - AC: 500V
  • Voltage Rating - DC: 2000V (2kV)
  • Package: Bulk
  • Mounting Type: Through Hole
  • Operating Temperature: -55°C ~ 105°C
  • Standard Package: 25
  • REACH: Unaffected
  • HTSUS: 8532.25
