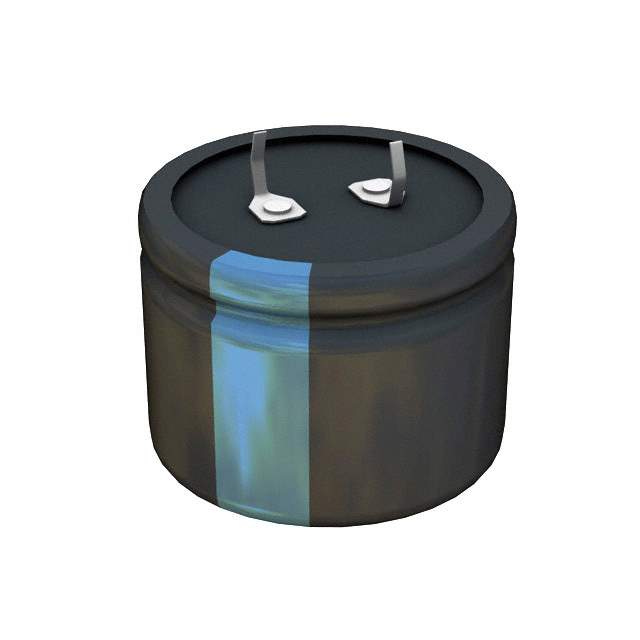

Same model may have multiple batches, images only for reference.

380LX331M315A012

Get a Quote

Part No	380LX331M315A012
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Description	CAP ALUM 330UF 20% 315V SNAP
Datasheet	380LX331M315A012 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Cornell Dubilier Electronics (CDE)
Series	380LX
Packaging	Bulk
Capacitance	330μF
Tolerance	±20%
Voltage Rating	315V
ESR (Equivalent Series Resistance)	603 mOhm
Lifetime @ Temp.	3000 Hrs @ 85°C
Operating Temperature Range	-25°C ~ 85°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	1.8A @ 120Hz
Lead Spacing	0.394" (10.00mm)
Dimension	1.378" Dia (35.00mm)
Height - Seated (Maximum)	1.063" (27.00mm)
Mounting Style	Through Hole
Package	Radial, Can - Snap-In
Win Source Part Number	760496-380LX331M315A012
Popularity	Medium
Supply and Demand Status	Limited
Family Name	380LX
ECCN	37511
Country of Origin	United States of America
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian 380LX331M315A012 CAD Model

Description

The Cornell Dubilier Electronics (CDE) 760496-380LX331M315A012 is a capacitor from Cornell Dubilier Electronics (CDE).

Capacitance: 330μF
Voltage Rating: 315V
Tolerance: ±20%
ESR: 603 mOhm
Operating Temperature: -25°C to 85°C
Packaging: Radial, Can - Snap-In
Dimensions: 1.378" Dia (35.00mm)
Ripple Current: 1.8A @ 120Hz
Polarization: Polarized
