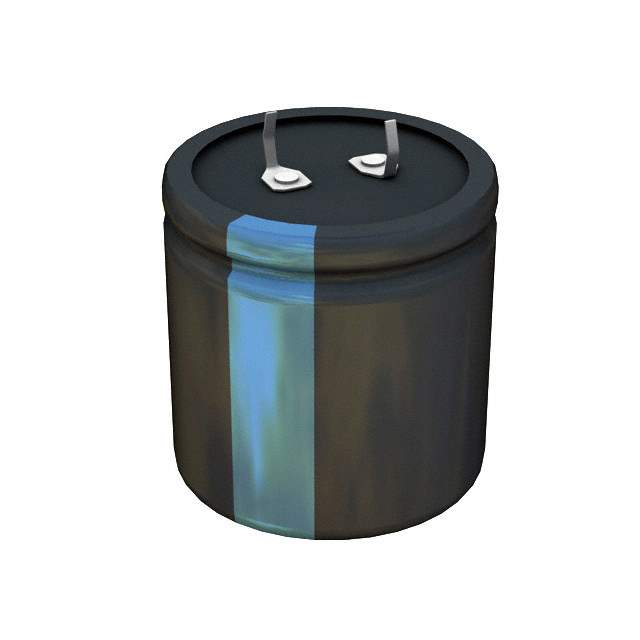

380LX273M025A032 Real Image
Same model may have multiple batches, images only for reference.

380LX273M025A032

Part No 380LX273M025A032
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 27000UF 20% 25V SNAP / 27000 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 23mOhm @ 120Hz 3000 Hrs @ 85°C
Datasheet
380LX273M025A032 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series 380LX
Package Bulk
Capacitance 27000 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) 23mOhm @ 120Hz
Lifetime @ Temp. 3000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 6.2 A @ 120 Hz
Ripple Current @ High Frequency 7.1 A @ 20 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 1.457" (37.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 80
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1351487-380LX273M025A032
Ultra Librarian 3D Model Ultra Librarian 380LX273M025A032 CAD Model

Description

The Cornell Dubilier Electronics (CDE) 380LX series capacitor is a radial, can-snap-in type of aluminum electrolytic capacitor with a capacitance of 27000 µF and a voltage rating of 25 V.

  • Capacitance: 27000 µF
  • Tolerance: ±20%
  • Voltage Rating: 25 V
  • ESR (Equivalent Series Resistance): 23mOhm @ 120Hz
  • Ripple Current: 6.2 A @ 120 Hz, 7.1 A @ 20 kHz
  • Application: General Purpose
  • Lifetime: 3000 hours @ 85°C
  • Size / Dimension: 1.378" Dia (35.00mm)
  • Height - Seated (Max): 1.457" (37.00mm)
  • Lead Spacing: 0.394" (10.00mm)
  • Polarization: Polarized
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 85°C
