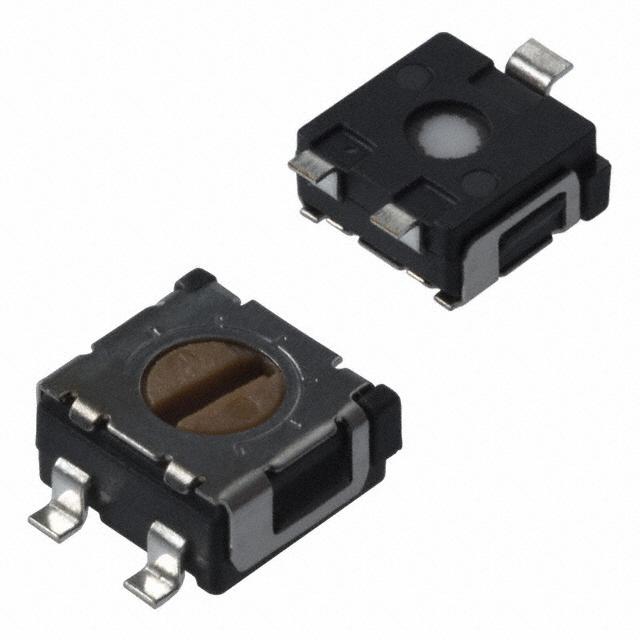

Same model may have multiple batches, images only for reference.
ST4ETB502 Copal Electronics Inc.
Same model may have multiple batches, images only for reference.

ST4ETB502

Part No ST4ETB502
Manufacturer Copal Electronics Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 5K OHM 0.25W SMD
Datasheet
ST4ETB502 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Copal Electronics Inc.
Packaging Reel - TR
Status Active
Resistance (Ohms) 5k
Power (Watts) 0.25W, 1/4W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style Gull Wing
Dimension Square - 0.197" L x 0.177" W x 0.091" H (5.00mm x 4.50mm x 2.30mm)
Win Source Part Number 129699-ST4ETB502
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ST4ETB502 CAD Model

Description

The Copal Electronics Inc. ST4ETB502 is a medium-popularity potentiometer with a limited supply and demand status.

  • Adjustment: Top adjustment
  • Resistance: 5k ohms
  • Power Rating: 0.25W or 1/4W
  • Tolerance: ±20%
  • Temperature Coefficient: ±100ppm/°C
  • Resistive Material: Cermet
  • Mounting: Surface mount technology
  • Dimension: 0.197" L x 0.177" W x 0.091" H (5.00mm x 4.50mm x 2.30mm)
