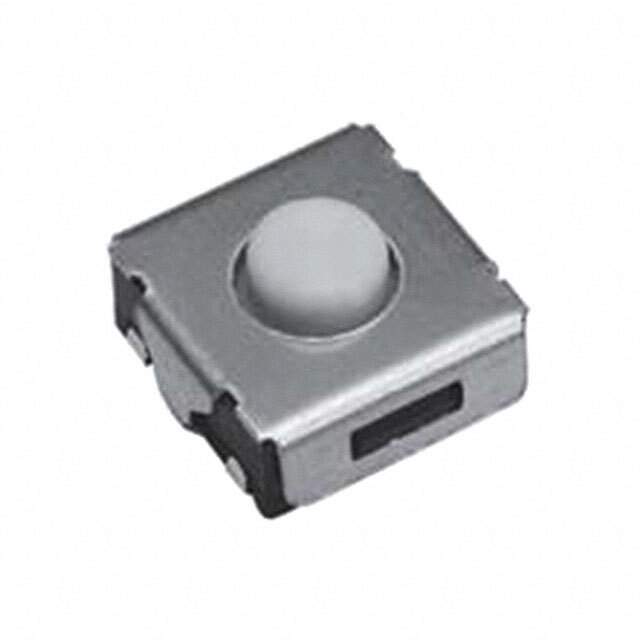

SMTE3-01E-Z Real Image
Same model may have multiple batches, images only for reference.

SMTE3-01E-Z

Part No SMTE3-01E-Z
Manufacturer Copal Electronics Inc.
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.03A 24V / Surface Mount Tactile Switches
Datasheet
SMTE3-01E-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Copal Electronics Inc.
Series SMTE3
Packaging Reel package
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.03A @ 24VDC
Actuator Type Standard
Mounting SMD
Actuator Height off PCB, Vertical 3.50mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 7.00mm x 6.80mm
Illumination Non-Illuminated
Operating Force 200gf
Features Washable
Switch Travel 0.50mm
Mechanical Life 100,000 Cycles
Operating Temperature Range -25°C ~ 70°C
Win Source Part Number 794804-SMTE3-01E-Z
Popularity Medium
Supply and Demand Status Limited
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian SMTE3-01E-Z CAD Model

Description

The Copal Electronics Inc. 794804-SMTE3-01E-Z is a switch that belongs to the SMTE3 series.

  • Switch Function: Off-Mom
  • Circuit: SPST-NO
  • Actuator Type: Standard
  • Switch Travel: 0.50mm
  • Contact Rating: 0.03A @ 24VDC
  • Operating Force: 200gf
  • Mechanical Life: 100,000 cycles
  • Mounting: Through Hole
  • Termination: J Lead
