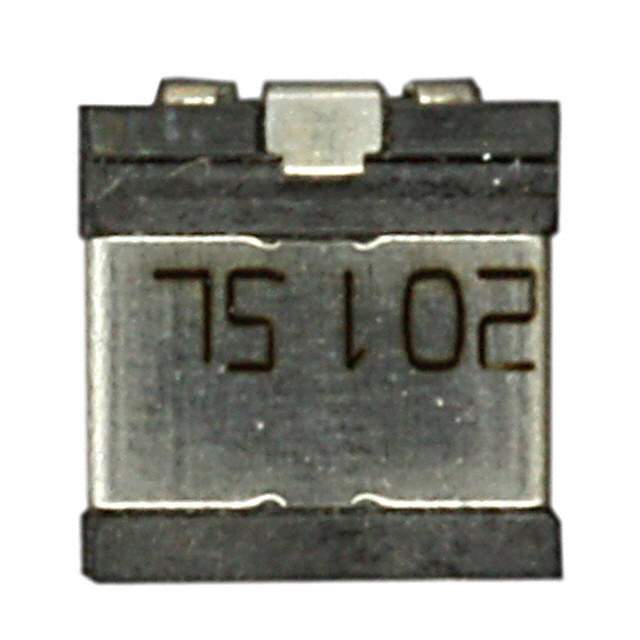

The Copal Electronics Inc. SM-4W 103 is a surface mount trimming potentiometer designed to provide precise resistance adjustment in electronic circuits. The '103' likely indicates a resistance value of 10k ohms (10 x 10^3 ohms). This single-turn potentiometer facilitates fine-tuning and calibration in a variety of applications. Its compact size and surface mount design make it well-suited for modern, high-density PCB layouts.

Applications

• Calibration of Electronic Instruments: Used for precise adjustment of circuits in oscilloscopes, multimeters, and signal generators.
• Gain Adjustment in Amplifiers: Employed to set the gain of operational amplifiers and other amplifier circuits.
• Offset Adjustment in Sensors: Integrated into sensor circuits to compensate for offset errors and improve accuracy.
• Control of LED Brightness: Used in LED lighting circuits to adjust the brightness of LEDs.
• Fine-Tuning of Filters: Incorporated into filter circuits for precise adjustment of cutoff frequencies.

Features

• Surface Mount Technology (SMT): Allows for automated assembly and efficient use of PCB space.
• Single-Turn Potentiometer: Provides a simple and direct means of setting the resistance value.
• Compact Size: Minimizes the footprint on the PCB, making it suitable for high-density designs.
• Cermet Element: Offers excellent stability and reliability.
• 10k Ohm Resistance: Provides a standard resistance value for many common circuit applications.

Benefits

• Precise Adjustment: Enables accurate calibration and fine-tuning of electronic circuits.
• Space-Saving Design: Ideal for applications where PCB space is limited.
• Easy Integration: Compatible with standard surface mount assembly processes.
• Reliable Performance: Ensures stable and consistent operation over time.
• Cost-Effective Solution: Provides a cost-effective means of achieving precise circuit adjustments.

Technical Specifications:

The SM-4W 103 typically features a resistance of 10k ohms with a tolerance of ±20%. Its power rating is typically around 0.25W, and it can operate within a temperature range of -55°C to +125°C. The potentiometer uses a cermet resistive element for long-term stability and precise adjustment. The housing is generally made of a heat-resistant plastic material suitable for reflow soldering. This ensures that the component can withstand the high temperatures associated with automated assembly processes.

The SM-4W 103 is a commonly used component in a wide range of electronic devices due to its precision, reliability, and ease of integration.
