Same model may have multiple batches, images only for reference.

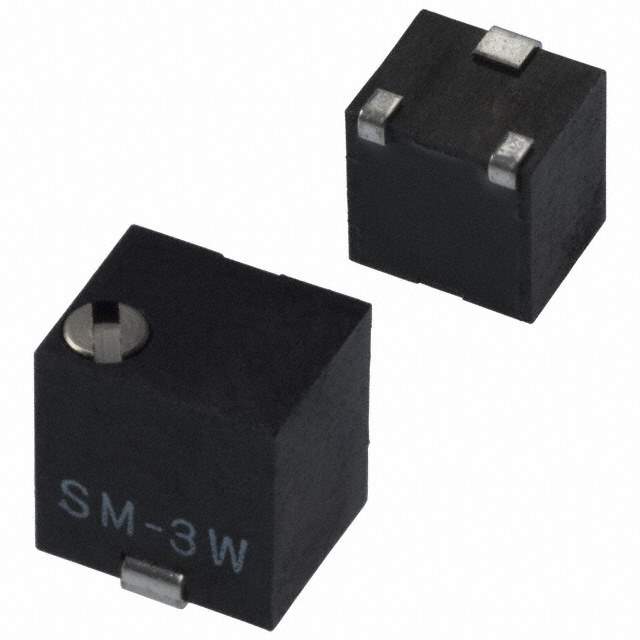

SM-3TW502 Real Image
Same model may have multiple batches, images only for reference.

SM-3TW502

Part No SM-3TW502
Manufacturer Copal Electronics Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 5K OHM 0.125W SMD
Datasheet
SM-3TW502 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Copal Electronics Inc.
Packaging Reel - TR
Status Active
Resistance (Ohms) 5k
Power (Watts) 0.125W, 1/8W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 11
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.154" x 0.126" Face x 0.154" H (3.90mm x 3.20mm x 3.90mm)
Win Source Part Number 131777-SM-3TW502
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SM-3TW502 CAD Model

Description

The Copal Electronics Inc. SM-3TW502 series potentiometer is a high-quality electronic component designed for use in a wide range of applications.

  • Resistance: 5k ohms
  • Tolerance: ±20%
  • Adjustment Type: Top adjustment
  • Resistive Material: Cermet
  • Power Rating: 0.125W
  • Temperature Coefficient: ±100ppm/°C
  • Dimension: 0.154" x 0.126" face x 0.154" H (3.90mm x 3.20mm x 3.90mm)
  • Packaging: Reel
  • Popularity: Medium
