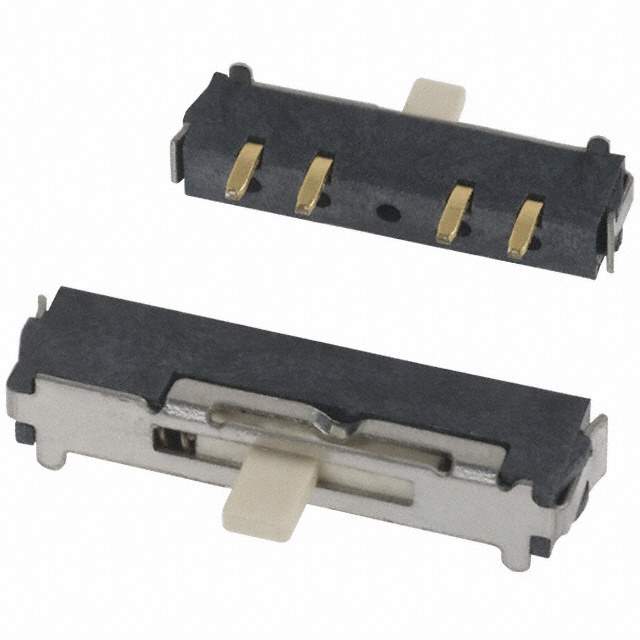

CSS-1311TB Real Image
Same model may have multiple batches, images only for reference.

CSS-1311TB

Part No CSS-1311TB
Manufacturer Copal Electronics Inc.
Catalog Slide Switches
Description SWITCH SLIDE SP3T 100MA 12V
Datasheet
CSS-1311TB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Copal Electronics Inc.
Packaging Reel - TR
Status Active
Circuit SP3T
Contact Timing Non-Shorting (BBM)
Switch Function On-On-Mom
Current Rating 100mA (DC)
Voltage Rating - DC 12V
Actuator Type Standard
Actuator Length 2.00mm
Contact Finish Gold
Mounting Surface Mount, Right Angle
Termination Style Gull Wing
Actuator Material Liquid Crystal Polymer (LCP)
Switch Travel 2.00mm
Temperature Range - Operating -20°C to 70°C
Electrical Life 10,000 Cycles
Operating Force 102 to 357gf
Win Source Part Number 1102039-CSS-1311TB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CSS-1311TB CAD Model

Description

The Copal Electronics Inc. 1102039-CSS-1311TB is a SP3T circuit switch with a voltage rating of 12V.

  • Circuit: SP3T
  • Voltage Rating: 12V
  • Current Rating: 100mA (DC)
  • Mounting: Surface, Right Angle
  • Contact Finish: Gold
  • Contact Timing: Non-Shorting (BBM)
  • Operating Force: 102 to 357gf
  • Electrical Life: 10,000 cycles
  • Supply and Demand Status: Balanced
