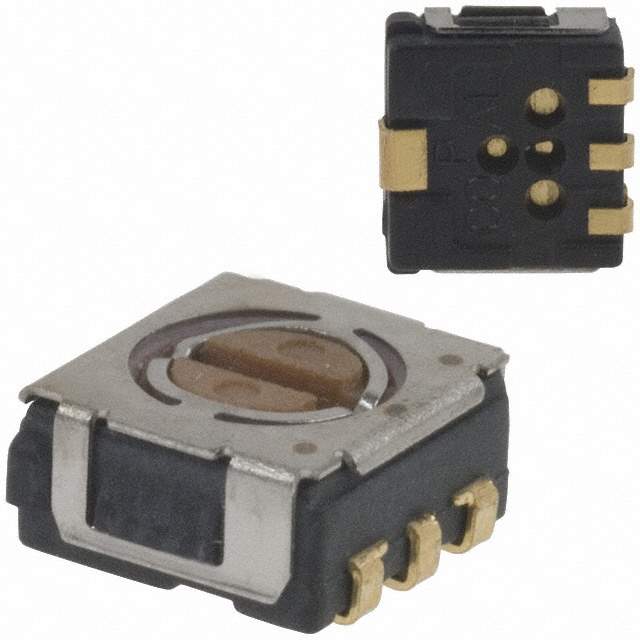

CS-4-13NTA Real Image
Same model may have multiple batches, images only for reference.

CS-4-13NTA

Part No CS-4-13NTA
Manufacturer Copal Electronics Inc.
Catalog DIP Switches
Description SWITCH ROTARY DIP SP3T 100MA 16V
Datasheet
CS-4-13NTA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Copal Electronics Inc.
Packaging Reel - TR
Status Active
Circuit SP3T
Number of Positions 3
Current Rating 100mA
Voltage Rating 16VDC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.091" (2.30mm)
Mounting SMD (SMT)
Termination Style J Lead
Pitch 0.051" (1.30mm)
Washable Yes
Body Material Epoxy
Length 0.197" (5.00mm)
Temperature Range - Operating -25°C to 70°C
Electrical Life 200 Cycles
Win Source Part Number 1030353-CS-4-13NTA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CS-4-13NTA CAD Model

Description

The Copal Electronics Inc. CS-4-13NTA is a SP3T rotary switch that has 3 positions and a pitch of 0.051" (1.30mm).

  • Voltage Rating: 16VDC
  • Current Rating: 100mA
  • Height above board: 0.091" (2.30mm)
  • Length: 0.197" (5.00mm)
  • Washable: washable
  • Termination style: J lead termination style with gold contact finish
  • Mounted: using SMD (SMT) technology
  • Supply and demand status: balance
  • Operating temperature: -25°C to 70°C
