Same model may have multiple batches, images only for reference.

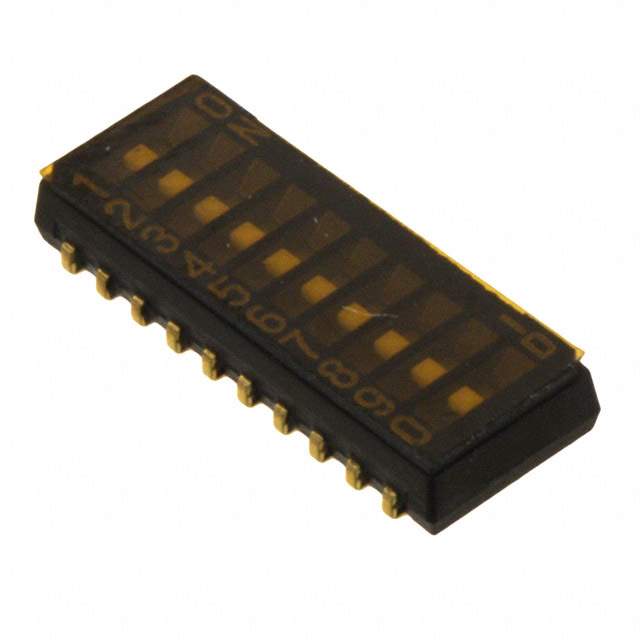

CHS-10TA Real Image
Same model may have multiple batches, images only for reference.

CHS-10TA

Part No CHS-10TA
Manufacturer Copal Electronics Inc.
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 6V
Datasheet
CHS-10TA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Copal Electronics Inc.
Packaging Reel - TR
Status Active
Circuit SPST
Number of Positions 10
Current Rating 100mA
Voltage Rating 6VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.098" (2.50mm)
Mounting SMD (SMT)
Termination Style J Lead
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Tape Seal
Body Material Polyphenylene Sulfide (PPS)
Length 0.563" (14.30mm)
Temperature Range - Operating -40°C to 85°C
Electrical Life 2,000 Cycles
Win Source Part Number 1029225-CHS-10TA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CHS-10TA CAD Model

Description

The Copal Electronics Inc. switch, with Win Source Part Number 1029225-CHS-10TA, is a surface mount, slide (standard) SPST switch with a pitch of 0.050" (1.27mm), half.

  • Pitch: 0.050" (1.27mm)
  • Voltage Rating: 6VDC
  • Current Rating: 100mA
  • Electrical Life: 2,000 cycles
  • Actuator Level: Flush, Recessed
  • Washable: Yes
  • Material: Polyphenylene Sulfide (PPS)
  • Temperature Range: -40°C to 85°C
