Same model may have multiple batches, images only for reference.

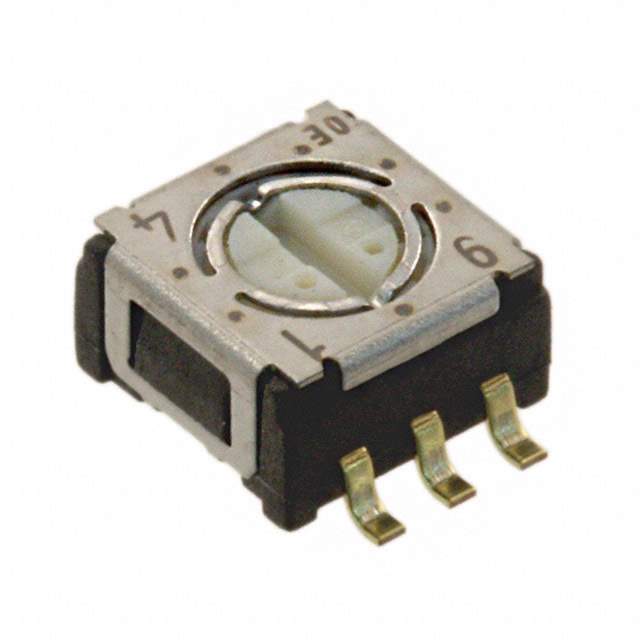

S-4010TB Real Image
Same model may have multiple batches, images only for reference.

S-4010TB

Part No S-4010TB
Manufacturer Copal Electronics Inc.
Catalog DIP Switches
Description SWITCH ROTARY DIP BCD 100MA 2.4V
Datasheet
S-4010TB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Copal Electronics Inc.
Packaging Reel - TR
Status Active
Circuit BCD
Number of Positions 10
Current Rating 100mA
Voltage Rating 2.4VDC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.102" (2.60mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable No
Body Material Polyphenylene Sulfide (PPS)
Length 0.189" (4.80mm)
Temperature Range - Operating -25°C to 70°C
Electrical Life 10,000 Steps
Win Source Part Number 114072-S-4010TB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian S-4010TB CAD Model

Description

The Copal Electronics Inc. S-4010TB is an active, 10-position, gull-wing termination style switch designed for use in electronic applications.

  • The switch has a pitch of 0.050 inches (1.27mm) and can handle a current rating of up to 100mA.
  • The voltage rating for the switch is 2.4VDC, and the height above board is 0.102 inches (2.60mm).
  • The switch is made of polyphenylene sulfide (PPS) and has a BCD circuit.
  • The actuator type is rotary for tool, and the electrical life of the switch is 10,000 steps.
  • The switch is suitable for use in various electronic applications.
